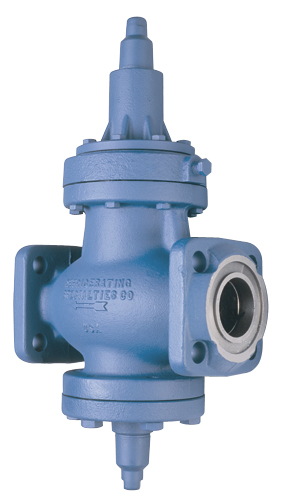

Parker A4AJS-LLP Electronic Pilot Operated w/ Electric Shut-Off & Low Limit Pilot Inlet Regulators
The A4A outlet family of regulators are compact, heavy duty, pilot operated, and have remarkable functionality. The regulator will gradually close when downstream pressure begins to rise above the setting and will gradually open when pressure begins to fall below the setting. The regulator cannot maintain set-for pressure if uncontrolled branch pipe lines feed into the main pipeline downstream of the regulator. The valve's purpose is to modulate flow of refrigerant gas or liquid to maintain constant downstream pressure as set-for, despite load fluctuations.
Part Kits
| | 20mm (3/4") | 25mm (1 ") | ||||||||
| Item No. | Description | Kit No. | Qty | Kit No. | Qty | |||||
| 1 | Seal Cap | Only Avail. With Kit | 1 | Only Avail with Kit | 1 | |||||
| 2 | Seal Cap Gasket | Only Avail with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 1-2 | Cap Kit, Seal | 202110 | 1 | 202110 | 1 | |||||
| 3 | Nut, Packing | Only Avail. With Kit | 1 | Only Avail. with Kit | 1 | |||||
| 4 | Packing, Stem | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 5 | Washer, Flat | Only Avail. with Kit | 1 | Only Avail. With Kit | 1 | |||||
| 3-5 | Packing Kit, Stem | 202100 | 1 | 202100 | 1 | |||||
| 6 | Stem, Adjusting | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 4-6 | Stem Kit, Adjusting | 202120 | 1 | 202120 | 1 | |||||
| 12 | Plate, Spring, Upper | Only Avail with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 13 | Spring, Comp. | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 14 | Plate, Spring, Lower | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 15 | Follower, Diaphragm | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 3-5, 6, 12-15 | Spring/ Stem Kit | Range A/V | 202006 | 1 | 202006 | 1 | ||||
| Range D | 202007 | 1 | 202007 | 1 | ||||||
| 8 | Bonnet | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 11 | Screw, Hx. Hd. | Only Avail. with Kit | 8 | Only Avail. with Kit | 8 | |||||
| 16 | Bonnet Gasket | Only Avail. With Kit | 1 | Only Avail. With Kit | 1 | |||||
| 1-6, 8, 11-16 | Spring Kit with Bonnet | Range A/V | 202008 | 1 | 202008 | 1 | ||||
| Range D | 202009 | 1 | 202009 | 1 | ||||||
| 12-14, 16 | Spring Kit, Less Bonnet | Range A/V | 202481 | 1 | 202481 | 1 | ||||
| Range D | 202482 | 1 | 202482 | 1 | ||||||
| 17 | Diaphragm | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 19 | Gasket | Only Avail. with Kit | I | Only Avail. with Kit | 1 | |||||
| 16,17, 19 | Diaphragm Kit | Range A/V | 200770 | 1 | 200770 | 1 | ||||
| 17 | Diaphragms | Range D | Only Avail. with Kit | 2 | Only Avail, with Kit | 2 | ||||
| 16,17, 19 | Diaphragm Kit | Range D | 200771 | 1 | 200771 | 1 | ||||
| 16-19 | VC Vacuum Cartridge | 202004 | 1 | 202004 | 1 | |||||
| 16-19 | Pilot Seat/ Diaphragm Kit (Not A4AO) | Range A | 202000 | 1 | 202000 | 1 | ||||
| Range V | 202004 | 1 | 202004 | 1 | ||||||
| Range D | 202002 | 1 | 202002 | 1 | ||||||
| 27 | Plug Pkg, 1/4" NPT | 202552 | 5 | 202552 | 5 | |||||
| 28 | Adapter | Only Avail. With Kit | 1 | Only Avail. With Kit | 1 | |||||
| 29 | Gasket | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 19,28, 29 | Adapter Kit | 200703 | 1 | 200703 | 1 | |||||
| 30 | Piston/Stem Assembly | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 29,30 | Piston Kit | 200760 | 1 | 200760 | 1 | |||||
| 32 | Valve Body | Not Available | | Not Available | | |||||
| 34 | Spring, Comp. | Only Avail. with Kit | 1 | Only Avail. With Kit | 1 | |||||
| 35 | Washer, Flat | Only Avail. with Kit | 1 | Only Avail. With Kit | 1 | |||||
| 36 | Wiper, Dirt | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 37 | "O" Ring | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 34-37 | Spring Kit, (A4A) Closing (A4AK) | 202300 | 1 | 202300 | 1 | |||||
| 202298 | 1 | 202298 | 1 | |||||||
| 33 | Plug/Stem Assembly | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 40 | Washer, Flat | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 41 | Packing, Stem | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 42 | Nut, Packing | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | |||||
| 33, 34-37, 40-42 | Full Cap. Plug Kit, Modul. | A4A | 202021 | 1 | 202022 | 1 | ||||
| A4AK | 202037 | 1 | 202038 | 1 | ||||||
| 33, 34-37, 40-42 | 50% Cap. Plug Kit, Modul. | A4A | 202029 | 1 | (*) | | ||||
| A4AK | 202036 | 1 | (*) | | ||||||
| 33, 34-37, 40-42 | 35% Cap. Plug Kit, Modul. | A4A | Not Available | | Not Available | | ||||
| A4AK | Not Available | | Not Available | | ||||||
| 33, 34-37, 40-42 | 17% Cap. Plug Kit, Modul. | (A4A) | 202030 | 1 | (*) | | ||||
| (A4AK) | 202030 | 1 | (*) | | ||||||
| | 32mm (1-1/4") | 40mm (1-5/8") | 50mm (2") | 65mm (2-1/2") | 75mm (3") | 100mm (4") | ||||||
| Item No. | Kit No. | Qty | Kit No. | Qty | Kit No. | Qty | Kit No. | Qty | Kit No. | Qty | Kit No. | Qty |
| 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 2 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 1-2 | 202110 | 1 | 202110 | 1 | 202110 | 1 | 202110 | 1 | 202110 | 1 | 202110 | 1 |
| 3 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail, with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 4 | Only Avail, with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 5 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 3-5 | 202100 | 1 | 202100 | 1 | 202100 | 1 | 202100 | 1 | 202100 | 1 | 202100 | 1 |
| 6 | Only Avail. with Kit | 1 | Only Avail with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 4-6 | 202120 | 1 | 202120 | 1 | 202120 | 1 | 202120 | 1 | 202120 | 1 | 202120 | 1 |
| 12 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail, with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 13 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 14 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | I | Only Avail. with Kit | 1 |
| 15 | Only Avail. with Kit | 1 | Only Avail, with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 3-5, 6, 12-15 | 202006 | 1 | 202006 | 1 | 202006 | 1 | 202006 | 1 | 202006 | 1 | 202006 | 1 |
| 202007 | 1 | 202007 | 1 | 202007 | 1 | 202007 | 1 | 202007 | 1 | 202007 | 1 | |
| 8 | Only Avail, with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail, with Kit | 1 | Only Avail. with Kit | 1 |
| 11 | Only Avail. with Kit | 8 | Only Avail. with Kit | 8 | Only Avail. with Kit | 8 | Only Avail. with Kit | 8 | Only Avail. with Kit | 8 | Only Avail. with Kit | 8 |
| 16 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 1-6, 8, 11-16 | 202008 | 1 | 202008 | 1 | 202008 | 1 | 202008 | 1 | 202008 | 1 | 202008 | 1 |
| 202009 | 1 | 202009 | 1 | 202009 | 1 | 202009 | 1 | 202009 | 1 | 202009 | 1 | |
| 12-14, 16 | 202481 | 1 | 202481 | 1 | 202481 | 1 | 202481. | 1 | 202481 | 1 | 202481 | 1 |
| 202482 | 1 | 202482 | 1 | 202482 | 1 | 202482 | 1 | 202482 | 1 | 202482 | 1 | |
| 17 | Only Avail with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail, with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 19 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail, with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 16,17, 19 | 200770 | 1 | 200770 | 1 | 200770 | 1 | 200770 | 1 | 200770 | 1 | 200770 | 1 |
| 17 | Only Avail with Kit | 2 | Only Avail with Kit | 2 | Only Avail. with Kit | 2 | Only Avail. with Kit | 2 | Only Avail. with Kit | 2 | Only Avail. with Kit | 2 |
| 16,17, 19 | 200771 | 1 | 200771 | 1 | 200771 | 1 | 200771 | 1 | 200771 | 1 | 200771 | 1 |
| 16-19 | 202004 | 1 | 202004 | 1 | 202004 | 1 | 202004 | 1 | 202004 | 1 | 202004 | 1 |
| 16-19 | 202000 | 1 | 202000 | 1 | 202000 | 1 | 202001 | 1 | 202001 | 1 | 202001 | 1 |
| 202004 | 1 | 202004 | 1 | 202004 | 1 | 202004 | 1 | 202004 | 1 | 202004 | 1 | |
| 202002 | 1 | 202002 | 1 | 202002 | 1 | 202003 | 1 | 202003 | 1 | 202003 | 1 | |
| 27 | 202552 | 5 | 202552 | 5 | 202552 | 5 | 202552 | 5 | 202552 | 5 | 202552 | 5 |
| 28 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 29 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 19.28,29 | 200700 | 1 | 200725 | 1 | 200725 | 1 | 200685 | 1 | 200713 | 1 | 200716 | 1 |
| 30 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 29,30 | 200767 | 1 | 200389 | 1 | 200389 | 1 | 200391 | 1 | 200393 | 1 | 200227 | 1 |
| 32 | Not Available | | Not Available | | Not Available | | Not Available | | Not Available | | Not7vailable | |
| 34 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail, with Kit | 1 | Only Avail. with Kit | 1 | Only Avail, with Kit | 1 | Only Avail. with Kit | 1 |
| 35 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Onlv Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 |
| 36 | Only Avail. with Kit | 1 | Only Avail. with Kit | 1 | Only Avail. with Kit | |||||||
| Sku | Check Valve | Coil | Coil Style | Flange Type | Flange Connection | Motor/IO Module | Port Size | Strainer | Valve Material | Price | Qty | Add To Cart | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 A4AJS LLP 3SW 120G ST | A40MA750A7S75B3XYXSN See Details |
None | 120/60 | Leaded, Green LED Pilot Light | SW | 3 in | None | 75mm (3 in) | w/ Strainer | Standard Valve |
|
|||
| 3 A4AJS LLP 3WN 120G 4-20MA MODULE ST | A40MA750A7W75B3AYXSN See Details |
None | 120/60 | Leaded, Green LED Pilot Light | WN | 3 in | 4-20 mA | 75mm (3 in) | w/ Strainer | Standard Valve |
|
|||
| 2-1/2 A4YB RA 208 | A40MA650A7X00D1NXSN4 See Details |
None | 208/60 | Leaded, Standard | No Flange | None | None | 65mm (2 1/2 in) | w/ Strainer | Standard Valve |
|
|||
| 3 A4AJS LLP 3WN 4-10MA MODULE ST | A40MA750A7W75X0AYXSN See Details |
None | No Coil, AC | No Coil Style | WN | 3 in | 4-20 mA | 75mm (3 in) | w/ Strainer | Standard Valve |
|
|||
