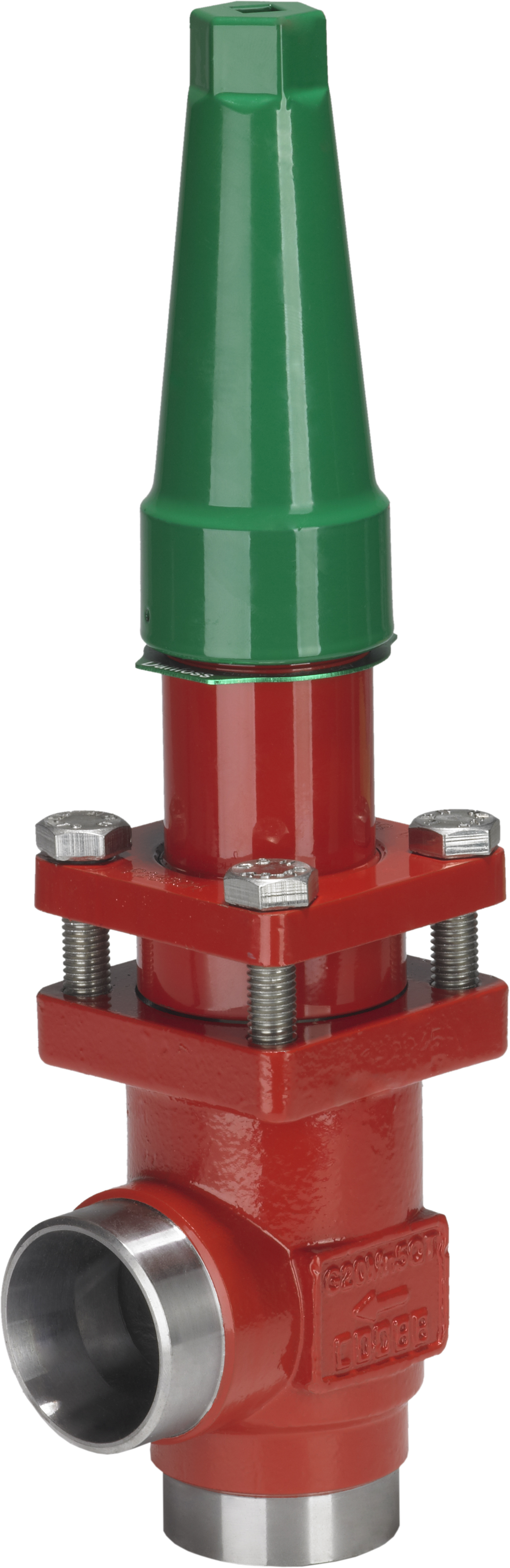

Danfoss SCA-X, SCA-XS Angle Stop Check Valves
SCA-X are check valves with a built-in shutoff valve function. CHV-X are check valves only. SCA-X/CHV-X are available in angleway versions. The valves are designed to open at very low differential pressures, allow favorable flow conditions and are easy to disassemble for inspection and service. The SCA-X is equipped with a vented cap and has internal backseating that enables the spindle seal to be replaced while the valve still under pressure. Laser cut V-ports provide excellent opening characteristics (SCA-X/CHV-X 50-125). The valve cone has a built-in flexibility to ensure a precise and tight closing toward the valve seat. A well-balanced dampening effect between the piston and the cylinder provides optimal protection during low loads and against pulsations.
| Sku | Port Size | Valve Type | Connection Type | Valve Finish | Price | Qty | Add To Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| SCA-X 15 A Ang Stop/Check Valve PS52 | 148B5209 See Details |
1/2" (15mm) | SCA-X | BW (Butt Weld) | Painted |
|
|||
| SCA-X SS 15 D Ang Stop Check Valve PS52 | 148B5293 See Details |
1/2" (15mm) | SCA-XSS | DIN Butt Weld | Stainless Steel |
|
|||
| SCA-X 20 A Ang Stop/Check Valve PS52 | 148B5309 See Details |
3/4" (20mm) | SCA-X | BW (Butt Weld) | Painted |
|
|||
| SCA-X SS 20 A40 ANG Stop CheckValve PS52 | 148B6489 See Details |
3/4" (20mm) | SCA-XSS | ANSI Sch 40 Butt Weld | Stainless Steel |
|
|||
| SCA-X 25 A Ang Stop/Check Valve PS52 | 148B5409 See Details |
1" (25mm) | SCA-X | BW (Butt Weld) | Painted |
|
|||
| SCA-X SS 25 A40 Ang Stop Valve PS52 | 148B6480 See Details |
1" (25mm) | SCA-XSS | ANSI Sch 40 Butt Weld | Stainless Steel |
|
|||
| SCA-X 32 A Ang Stop/Check Valve PS52 | 148B5509 See Details |
1-1/4" (32mm) | SCA-X | BW (Butt Weld) | Painted |
|
|||
| SCA-X SS 32 A40 ANG Stop CheckValve PS52 | 148B6490 See Details |
1-1/4" (32mm) | SCA-XSS | ANSI Sch 40 Butt Weld | Stainless Steel |
|
|||
| SCA-X 40 A Ang Stop/Check Valve PS52 | 148B5609 See Details |
1-1/2" (40mm) | SCA-X | BW (Butt Weld) | Painted |
|
|||
| SCA-X SS 40 A40 Ang Stop Valve PS52 | 148B5687 See Details |
1-1/2" (40mm) | SCA-XSS | ANSI Sch 40 Butt Weld | Stainless Steel |
|
|||
| SCA-X 50 A Ang Stop/Check Valve PS52 | 148B5703 See Details |
2" (50mm) | SCA-X | BW (Butt Weld) | Painted |
|
|||
| SCA-X 50 SOC Ang Stop/Check Val PS52 | 148B5704 See Details |
2" (50mm) | SCA-X | SW (Socket Weld) | Painted |
|
|||
| SCA-X 65 A Ang Stop/Check Valve PS52 | 148B5802 See Details |
2-1/2" (65mm) | SCA-X | BW (Butt Weld) | Painted |
|
|||
| SCA-X 80 A Ang Stop/Check Valve PS52 | 148B5903 See Details |
3" (80mm) | SCA-X | BW (Butt Weld) | Painted |
|
|||
| SCA-X 125 A Ang Stop/Check Valve PS52 | 148B6103 See Details |
5" (125mm) | SCA-X | BW (Butt Weld) | Painted |
|
|||
