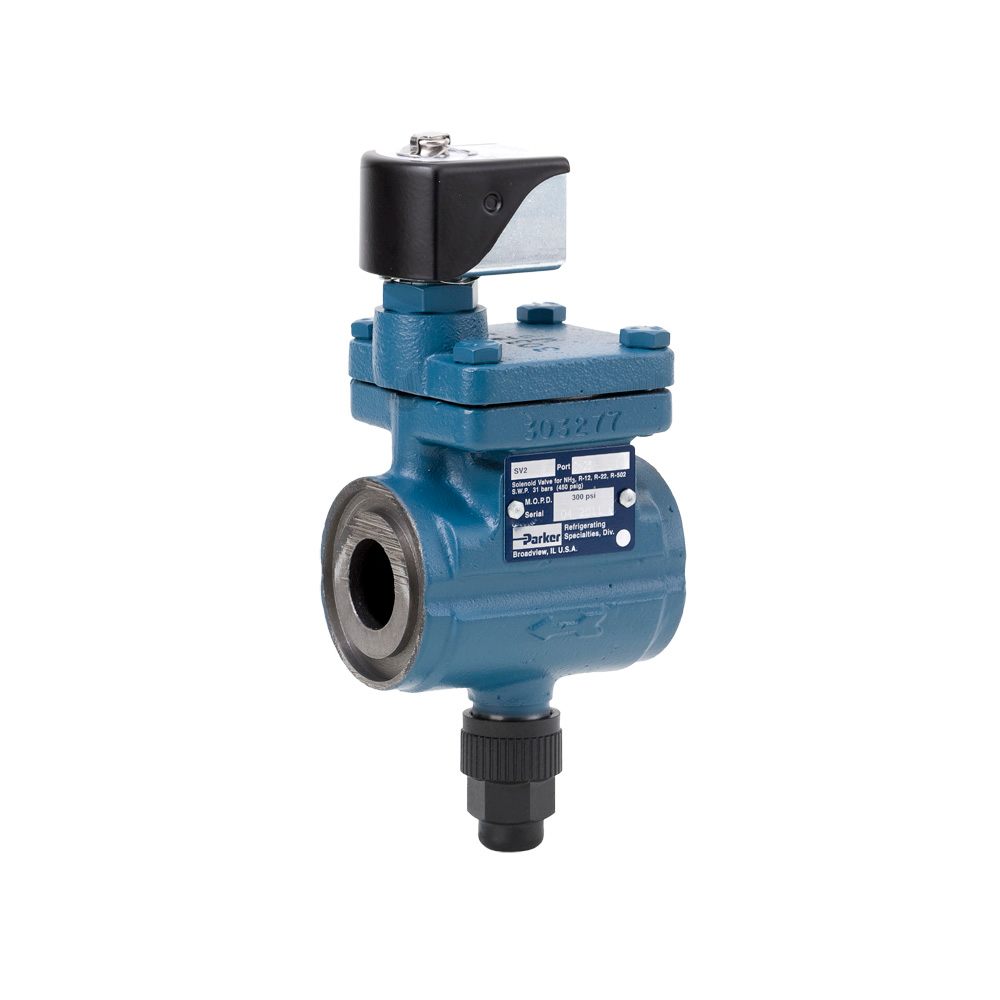

Parker SV2X Explosion Proof Solenoid Valves
This compact, heavy duty, pilot operated, ductile iron bodied solenoid valve is suitable for Ammonia, and other refrigerants, certain oils and other fluids approved for use in refrigeration.
Part Kits
| Item No. | Description | Qty. | 13 mm(1/2") | 20mm (3/4") | 25mm (1") | 32mm (1-1/4") |
| 1 | Coil | 1 | ONLY WITH KIT | |||
| 2 | Sleeve, Coil Insert | 2 | ONLY WITH KIT | |||
| 3 | Frame, Coil | 1 | ONLY WITH KIT | |||
| 4 | Cover, Coil | 1 | ONLY WITH KIT | |||
| 5 | Clip, Coil Cover | ONLY WITH KIT | ||||
| 1 to 5 | Coil & Hsg Kit | ó | SPECIFY COIL VOLTAGE AND VALVE TYPE | |||
| 6 | Solenoid Oper. Assembly | 1 | ONLY WITH KIT | |||
| 7 | O-Ring (Not Shown) | 1 | ONLY WITH KIT | |||
| 8 | Wrench | ONLY WITH KIT | ||||
| 6 to 8 | Solenoid Oper. Repair Kit | ó | ||||
| 9 | Seal Cap | 1 | ONLY WITH KIT | |||
| 10 | O-Ring, Seal Cap | 1 | ONLY WITH KIT | |||
| 9 to 10 | Seal Cap Kit (Discard Gasket) | ó | ||||
| 11 | Packing Nut | 1 | ONLY WITH KIT | |||
| 12 | Washer, Flat | 1 | ONLY WITH KIT | |||
| 13 | Packing, Stem | 1 | ONLY WITH KIT | |||
| 11 to 13 | Stem Packing Kit | ó | ||||
| 14 | Manual Opening Stem | 1 | ONLY WITH KIT | |||
| 11 to 14 | Manual Opening Stem Kit | ó | ||||
| 15 | Main Valve Plug Assembly | 1 | ONLY WITH KIT | |||
| 16 | Cover Gasket | 1 | ONLY WITH KIT | |||
| 17 | Bolt Package | 4 | ||||
| 15,16 | Main Valve Plug Kit | ó | ||||
| 18 | Closing Spring | 1 | ONLY WITH KIT | |||
| 16,18 | Closing Spring Kit | ó | ||||
| 19 | Top Cover | 1 | ONLY WITH KIT | |||
| 20 | O-Ring | 1 | ONLY WITH KIT | |||
| 16,19,20 | Top Cover Kit | ó | ||||
| 21 | Piston Retainer | 1 | ONLY WITH KIT | |||
| 22 | Piston Plug Assembly | 1 | ONLY WITH KIT | |||
| 23 | O-Ring | 1 | ONLY WITH KIT | |||
| 20,21,22,23 | * Piston Plug Kit SV2 | ó | Not Required | |||
| 20,21,22,23 | * Piston Plug Kit SV2A | ó | 202765 | |||
| 24 | Flange Gasket Package | 12 | 202078 | |||
| 7,10,16,20,23,24 | SV2, SV2A Solenoid Gasket Kit | ó | ||||
| SV2 Repair Kit | ó | |||||
| SV2A Repair Kit | ó | |||||
| Sku | Coil | Coil Style | Connection | Flange Type | Port Size | Strainer | Price | Qty | Add To Cart | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 SV2X 1/2SW 120/DC | SVX13NS13U1XSN See Details |
120 | Leaded, Standard | 1/2 in | SW | 13mm (1/2 in) | No Strainer |
|
|||
| 1/2 SV2X 1/2FPT 120/110 | SVX13NF13T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 1/2 in | FPT | 13mm (1/2 in) | No Strainer |
|
|||
| 1/2 SV2X 1/2ODS 120/110 | SVX13NK13T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 1/2 in | ODS | 13mm (1/2 in) | No Strainer |
|
|||
| 1/2 SV2X 1/2SW 120/110 | SVX13NS13T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 1/2 in | SW | 13mm (1/2 in) | No Strainer |
|
|||
| 1/2 SV2X 1/2SW 120/110 ST | SVX13YS13T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 1/2 in | SW | 13mm (1/2 in) | w/ Strainer |
|
|||
| 1/2 SV2X 5/8ODS 120/110 | SVX13NK05T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 5/8 in | ODS | 13mm (1/2 in) | No Strainer |
|
|||
| 1/2 SV2X 5/8ODS 120/110 ST | SVX13YK05T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 5/8 in | ODS | 13mm (1/2 in) | w/ Strainer |
|
|||
| 3/4 SV2X 3/4FPT 120/110 | SVX20NF20T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 3/4 in | FPT | 20mm (3/4 in) | No Strainer |
|
|||
| 3/4 SV2X 3/4SW 120/110 | SVX20NS20T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 3/4 in | SW | 20mm (3/4 in) | No Strainer |
|
|||
| 3/4 SV2X 3/4SW 120/110 ST | SVX20YS20T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 3/4 in | SW | 20mm (3/4 in) | w/ Strainer |
|
|||
| 3/4 SV2X 7/8ODS 120/110 | SVX20NK07T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 7/8 in | ODS | 20mm (3/4 in) | No Strainer |
|
|||
| 3/4 SV2X 1SW 120/110 | SVX20NS25T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 1 in | SW | 20mm (3/4 in) | No Strainer |
|
|||
| 1 SV2X 1-1/8ODS 120/110 | SVX25NK09T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 1 1/8 in | ODS | 25mm (1 in) | No Strainer |
|
|||
| 1 SV2X 1-1/8ODS 120/110 ST | SVX25YK09T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 1 1/8 in | ODS | 25mm (1 in) | w/ Strainer |
|
|||
| 3/4 SV2X 1-3/8ODS 120/110 | SVX20NK11T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 1 3/8 in | ODS | 20mm (3/4 in) | No Strainer |
|
|||
| 1 SV2X 1-3/8ODS 120/110 | SVX25NK11T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 1 3/8 in | ODS | 25mm (1 in) | No Strainer |
|
|||
| 1-1/4 SV2X 1-5/8ODS 120/110 | SVX32NK14T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | 1 5/8 in | ODS | 32mm (1 1/4 in) | No Strainer |
|
|||
| 1/2 SV2X 120/110 | SVX13NX00T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | None | No Flange | 13mm (1/2 in) | No Strainer |
|
|||
| 3/4 SV2X 120/110 | SVX20NX00T1XSN See Details |
120/60 ~ 110/50 | Leaded, Standard | None | No Flange | 20mm (3/4 in) | No Strainer |
|
|||
| 1/2 SV2X 1/2ODS 240/220 | SVX13NK13W1XSN See Details |
240/60 ~ 120/50 | Leaded, Standard | 1/2 in | ODS | 13mm (1/2 in) | No Strainer |
|
|||
