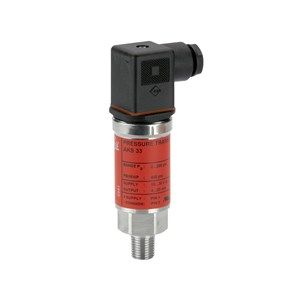

Sensor AKS 33 1/4 NPT, 0-500psi

AKS 33 are pressure transmitters that measure a pressure and convert the measured value to a standard signal. Highly developed sensor technology means high pressure regulation accuracy, a very important factor in the precise and energy-economic capacity regulation of refrigeration plant. Temperature compensation for LP and HP pressure transmitters, developed specially for refrigeration plant: LP: − 0 → +40°C ( ≤ 16 bar) HP: 0 → +80°C (>16 bar) Compatibility with all refrigerants incl. ammonia means less stock and greater application flexibility. Built-in voltage stabilizer, i.e. the AKS pressure transmitters can be powered from an unregulated voltage supply of any output within given limits. Effective protection against moisture means that the sensor can be mounted in very harsh environments, e.g. in the suction line encapsulated in an ice block.

• 1/4 male NPT connection
• DIN connector
• Stainless steel body and material in contact with medium
• Suitable for all refrigerants, including ammonia
• UL recognized for Class I, Group A, B, C, and D, Division 2
• Built-in voltage stabilizer for varying voltage supply
