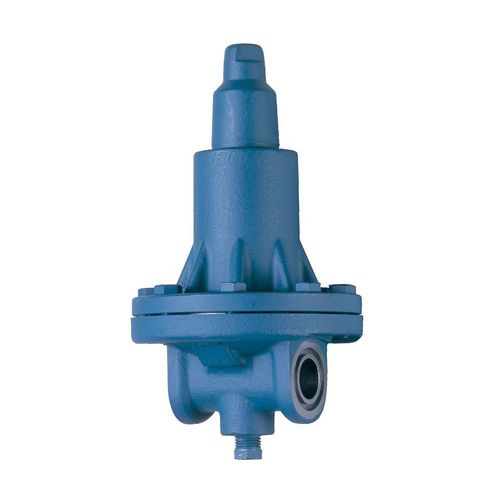

A2BO4E RD

$558.60

MPN: A206DC9X00XNSN
SKU: A206DC9X00XNSN
QTY:

ADD TO FAVORITES

Product Specs

  • Regulator Variation: A2BO4E Externally Equalized
  • Pressure Range: 5.2 to 19.3 (75 to 280)
  • Set Point: 9.7 (140)
  • Flange Type: No Flange
  • Flange Connection: None
  • Motor: None
  • Strainer: No Strainer
  • Valve Material: Standard Valve
  • Plated: No Plating
See All Options

Product Documents


Parker’s A2 series of compact pressure regulators help reduce system cost and complexity by utilizing a compact housing and direct operation. These valves are ideal for applications where a larger pilot operating valve is too costly or too large. The regulators can be used with ammonia and certain other refrigerants, oil, and other approved fluids. The regulators are ideal for use in systems where a small inlet or outlet pressure regulator is needed and can also be used as a remote pilot for larger control valves that are located in difficult to service areas.

Features

  • Compact Direct Diaphragm Operated
  • Design Pressure (MRP): 27.6 bar (400 PSIG)
  • Furnished with Flanged Connections: FPT, SW, WN or ODS
  • Available with Close Coupled Strainer
  • Stainless Steel Diaphragm
  • Easily removed for service

CUSTOMER SERVICE

QUESTIONS?

Can't find what you are looking for? Give us a call today!

sales@frostpoint.net (262)-261-6100

Parts

Valve

Item







Type

No.

Description

Oty.

Kit No.

A2B

Spring/Stem Kit

Ranges A & Y

1

202006



3

Nut, Packing

1





4

Packing, Stem

1





5

Washer, Flat

1





6

Stem, Adjusting

1





12

Plate, Spring, Upper

1





14

Plate, Spring, Lower

1





13

Spring, Range, Comp

1





15

Follower, Diaphragm

1



A2B, A2BO

Spring/Stern Kit

Range D

1

202007



3

Nut, Packing

1





4

Packing, Stem

1





5

Washer, Flat

1





6

Stem, Adjusting

1





12

Plate, Spring, Upper

1





14

Plate, Spring, Lower

1





13

Spring, Range, Comp

1





15

Follower, Diaphragm

1



A2A

Spring/Stem Kit

Range A

1

202344



3

Nut, Packing

1





4

Packing, Stem

1





5

Washer, Flat

1





6

Stem, Adjusting

1





12

Plate, Spring, Upper

1





14

Plate, Spring, Lower

1





13

Spring, Range, Comp

1





15A

Follower, Diaphragm

1



A2A

Spring/Stem

Range D

1

202345



3

Nut, Packing

1





4

Packing, Stem

1





5

Washer, Flat

1





6

Stem, Adjusting

1





12

Plate, Spring, Upper

1





14

Plate, Spring, Lower

1





13

Spring, Range, Comp

1





15A

Follower, Diaphragm

1



A2B

Bonnet/Spring Kit

Ranges A & V

1

202008



Spring/Stem Kit (202006)

1





1

Seal

1





2

Cap Gasket

1





8

Bonnet

1





11

Screw, Hex Hd.

8





16

Gasket

1



A2B, A2BO

Bonnet/Spring Kit

Range D

1

202009



Spring/Stem Kit (202007)

1





1

Seal

1





2

Cap Gasket

1





8

Bonnet

1





11

Screw, Hex Hd.

8





16

Gasket

1



A2A

Bonnet/Spring Kit

1

202359



Spring/Stem Kit (202344)

1





1

Seal

1





2

Cap Gasket

1





8

Bonnet

1





11

Screw, Hex Hd.

8





16

Gasket

1



A2B, A2BO

Diaphragm Kit

Ranges A & V

1

200770



17

Diaphragm

1





16

Gasket

1





18

Gasket

1



A2A

Diaphragm Kit

Ranges A & D

1

200771



17

Diaphragm

1





16

Gasket

1





18

Gasket

1



A2B, A2BO

Diaphragm Kit

Range D

1

200771



17

Diaphragm

1





16

Gasket

1





18

Gasket

1



A2B

Seat Kit, Pilot

Range A

1

202001



19

Seat, Pilot

1





Diaphragm Kit (200770)

1



A2B2

Seal Kit, Pilot

Range A

1

202000



19

Seat, Pilot

1





Diaphragm Kit (200770)

1



A2B

Seat Kit, Pilot

Range V

1

202004



19B

Seat, Pilot

1





Diaphragm Kit (200770)

1



A2B

Seat Kit, Pilot

Range D

1

202003



19

Seat, Pilot

1





Diaphragm Kit (200771)

1



A2B2

Seat Kit, Pilot

Range D

1

202002



19

Seat, Pilot

1





Diaphragm Kit (200771)

1



A2A

Seat Kit, Pilot

Ranges A & D

1

202005



19A

Seat, Pilot

1





Diaphragm Kit

1



A2BO

Plug Kit, Pilot

1

201394



27

Plug, Seal

1





28

O-Ring

1



A2BO1

Plug Kit, Pilot

Ranges V & D

1

200776



25

Plug, Pilot

1





26

O-Ring (A2BO1 E Only)

1





28

O-Ring

1





22

Nut, Retainer

1





18

Gasket

1





23

Spring

1



A2BO2

Plug Kit, Pilot

Ranges V & D

1

200777



25

Plug, Pilot

1





26

O-Ring (A2BO2 E Only)

1





28

O-Ring

1





22

Nut, Retainer

1





18

Gasket

1





23

Spring

1



A2BO4

Plug Kit, Pilot

Ranges V & D

1

200778



25

Plug, Pilot

1





26

O-Ring (A2BO4 E Only)

1





28

O-Ring

1





22

Nut, Retainer

1





18

Gasket

1





23

Spring

1



A2B,A2A,A2BO

Packing Kit, Stem

1

202100



5

Washer, Flat

1





3

Nut, Packing

1





4

Packing, Stem

1



A2B,A2A,A2BO

Cap Kit, Seal

1

202110



1

Seal Cap

1





2

Gasket

1



A2B,A2A,A2BO









29

Gaskets, Flange

12

202078
