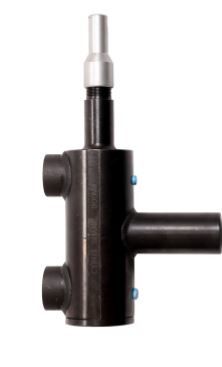

Cyrus Shank Manifold 900 SW with 500 PSI
The “M” series three-way Manifolds from Cyrus Shank feature a steel body with black oxide coating. Trim is stainless steel stem with teflon “O” Ring seating.
$908.64
SKU: 900MW-1-1/4
Product Specs
- Trim: Teflon O-Ring
- Temperature Range: ≤ 500°F
- Valve Finish: Carbon Steel - Black Oxide Coating
- Options: Connection with Schedule 160 Seamless Pipe
- Connection Style: BW/FNPT
- Pressure Relief Setting: 500(Inlet)/6000(Outlet) PSI
- Cv Value: 47.5
- Model Number: 900M Series
- Port Sizes: 2" x 1-1/4" x 1-1/4"
Product Documents
The "M" series three-way Manifolds from Cyrus Shank feature a steel body with black oxide coating. Trim is stainless steel stem with teflon "O" Ring seating. Maximum pressure of the "M" series manifolds is 500 PSIG. Temperature rating is -20° F (-29°C) to 500°F (+260°C). "M" Series with seal caps, are suitable for Freon applictions. You will find the all steel and stainless steel construction materials superior to other manifolds, delivering the quality that Cyrus Shank is known for.
Size:
900MW-1¼" -
2" MNPT x 1¼" FNPT x 1¼" FNPT
2" MNPT x 1¼" FNPT x 1¼" FNPT
900MW-1½" -
2" MNPT x 1½" FNPT x 1½" FNPT
CV Rating:
900MW-1¼" - 47.5 (both ports)
900MW-1½" - 66 (both ports)
Body Material:
Steel with black oxide coating
900MW-1¼" Manifolds can be used
with the following relief valves:
901
901
900MW-1½" Manifolds can be used
with the following relief valves:
903
903
