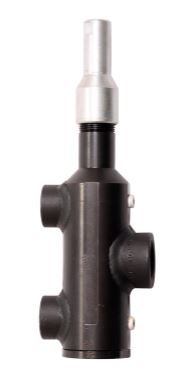

Cyrus Shank Manifold 901 with 6000 PSI
The “M” series three-way Manifolds from Cyrus Shank feature a steel body with black oxide coating. Trim is stainless steel stem with teflon “O” Ring seating.
Product Specs
- Connection Style: FNPT
- Trim: Teflon O-Ring
- Temperature Range: ≤ 500°F
- Valve Finish: Carbon Steel - Black Oxide Coating
- Cv Value: 47.5
- Model Number: 901M Series
- Options: Connection with Half Coupling
- Pressure Relief Setting: 3000(Inlet)/6000(Outlet) PSI
- Port Sizes: 2" x 1-1/4" x 1-1/4"
Product Documents
The "M" series three-way Manifolds from Cyrus Shank feature a steel body with black oxide coating. Trim is stainless steel stem with teflon "O" Ring seating. Maximum pressure of the "M" series manifolds is 500 PSIG. Temperature rating is -20° F (-29°C) to 500°F (+260°C). "M" Series with seal caps, are suitable for Freon applictions. You will find the all steel and stainless steel construction materials superior to other manifolds, delivering the quality that Cyrus Shank is known for. The 901M and 903M manifolds are similar to the 900MW manifold except the 2" schedule 160 pipe is replaced by a 2"
Size:
2" MNPT x 1¼" FNPT x 1¼" FNPT
900MW-1¼" Manifolds can be used
901
903
