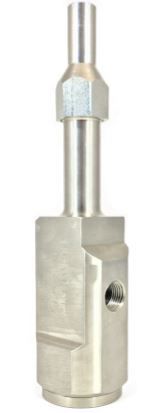

Cyrus Shank Manifold 849 SS Compact Alternative to 844 with 500 PSI
The “M” series three-way Manifolds from Cyrus Shank feature a steel body with black oxide coating. Trim is stainless steel stem with teflon “O” Ring seating.
Product Specs
- Connection Style: FNPT
- Valve Finish: Stainless Steel
- Trim: Teflon O-Ring
- Temperature Range: ≤ 500°F
- Pressure Relief Setting: 500 PSI
- Cv Value: 16
- Model Number: 849M Series
- Port Sizes: 1" x 3/4" x 3/4"
Product Documents
The "M" series three-way Manifolds from Cyrus Shank feature a steel body with black oxide coating. Trim is stainless steel stem with teflon "O" Ring seating. Maximum pressure of the "M" series manifolds is 500 PSIG. Temperature rating is -20° F (-29°C) to 500°F (+260°C). "M" Series with seal caps, are suitable for Freon applictions. You will find the all steel and stainless steel construction materials superior to other manifolds, delivering the quality that Cyrus Shank is known for. the 849M has a 1" NPT inlet to allow use of schedule 80 pipe without pressure drop.
Size:
1" x ¾" x ¾" FNPT
Steel with black oxide coating
849M Manifold can be used
804
