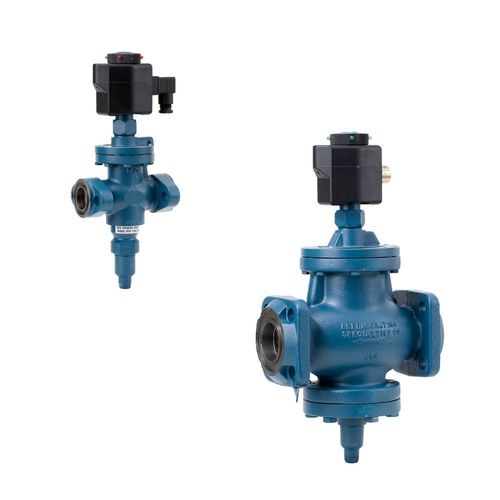

1-5/8 S4AE DN 2SW 115 QD
SKU: S4E400NS50A7XPN
Product Specs
- Reduced Capacity: Full Capacity
- Strainer: No Strainer
- Check Valve: None
- Plated: No Plating
- Flange Type: SWN - Socket Weld Neck
- Valve Material: Meets Pressure Equipment Directive (PED)
- Port Size: 40mm (1 5/8 in)
- Flange Connection: 2 in
- Coil: 115/50
- Coil Style: DIN, CE Approved
Product Documents
Features
- Standard Coil Housing Meets NEMA 3R and NEMA 4- Rain Tight
- Coil Housing Surpasses NEMA Salt Spray Test
- Plunger-Needle Assembly Same for S4A, S5A, S6N, S6A, S8F
- Molded Class “F” Coil Construction
- Same Coil Fits Most Refrigerating Specialties Solenoid Valves
- Pilot Light Available
- Stainless Steel Needle
- Manual Opening Stem
- Design Pressure (MRP): 28 bar (400 PSIG)
CUSTOMER SERVICE
QUESTIONS?
Can't find what you are looking for? Give us a call today!
sales@frostpoint.net (262)-261-6100Parts
| Item No. | Description & Contents | Qty. | 20mm | 20mm | 25mm | 32mm | 40mm | 50mm | 65mm | 75mm | 100mm |
| 3/4" | 3/4" | 1" | 1-1/4" | 1-5/8" | 2" | 2-1/2" | 3" | 4" | |||
| 6 | Coil | 1 | |||||||||
| 3 | O-Ring | 1 | |||||||||
| 1 | Knob | 1 | |||||||||
| 9 | Plunger/Needle Asm. | 1 | |||||||||
| 10 | Seat Asm. | 1 | |||||||||
| 8 | Gasket | 1 | |||||||||
| Plunger/Seat Kit | |||||||||||
| 9 | Plunger/Needle Asm. | 1 | |||||||||
| 8 | Gasket | 1 | |||||||||
| Plunger Kit, Needle | |||||||||||
| 11 | Adapter Asm. | 1 | |||||||||
| 12 | Gasket | 1 | |||||||||
| Adapter Kit | 201557 | 201164 | |||||||||
| 11 | Adapter Asm., S4AE | 1 | |||||||||
| 12 | Gasket | 1 | |||||||||
| Adapter Kit, S4AE | 201165 | ||||||||||
| 13 | Piston | 1 | |||||||||
| 12 | Gasket | 1 | |||||||||
| Piston Kit | |||||||||||
| 16 | Plug/Stem Asm. | 1 | |||||||||
| 24 | Nut, Packing | 1 | |||||||||
| 22 | Washer, Flat | 1 | |||||||||
| 23 | Packing, Stem | 1 | |||||||||
| * | Spring Kit, Closing | 1 | |||||||||
| Plug Kit, Main Valve | |||||||||||
| 20 | O-Ring | 1 | |||||||||
| 17 | Spring, Comp | 1 | |||||||||
| 19 | Wiper, Dirt | 1 | |||||||||
| 18 | Washer, Flat | 1 | |||||||||
| Spring Kit, Closing | |||||||||||
| 22 | Washer, Flat | 1 | |||||||||
| 24 | Nut, Packing | 1 | |||||||||
| 23 | Packing, Stem | 1 | |||||||||
| Packing Kit, Stem | |||||||||||
| 27 | Seal Cap | 1 | |||||||||
| 25 | Gasket | 1 | |||||||||
| Cap Kit, Seal | |||||||||||
| * | Plug Kit, Main Valve | 1 | |||||||||
| 21 | Cover, Bottom | 1 | |||||||||
| 25 | Gasket | 1 | |||||||||
| 27 | SealCap | I | |||||||||
| Bottom Asm. Kit | 202348 | ||||||||||
| 21 | Cover, Bottom | 1 | |||||||||
| 20 | O-Ring | 1 | |||||||||
| 22 | Washer, Flat | 1 | |||||||||
| 23 | Packing, Stem | 1 | |||||||||
| Cover Kit | |||||||||||
| 7B | Tube Asm., Soln | 1 | |||||||||
| 8 | Gasket | 1 | |||||||||
| 7A | Nut, Soln Tube | 1 | |||||||||
| Tube Kit, Solenoid | |||||||||||
| 28 | Gasket, Flange | 12 | |||||||||
| Bolt Package, Adapter | 6 | ||||||||||
| 15 | Bolts | 8 | |||||||||
| Bolt Package, Bottom Cap | |||||||||||
| 26 | Bolts, 1/2"-13 x 11/2" Lg. | 6 | |||||||||
| 8,12,25,28 | Gaskets | 8 | |||||||||
| 20 | O-Ring/Gasket | 1 | |||||||||
| Gasket Kit | |||||||||||
| 8-10,12,13 | |||||||||||
| 16-20,22-24 | Repair Kit, Soln |
