1-1/4 S5A 1-1/2FPT 120G
$1,154.25
MPN: S5A32NF38B3XSN
SKU: S5A32NF38B3XSN
SKU: S5A32NF38B3XSN
Product Specs
- Port Size: 32mm (1 1/4 in)
- Strainer: No Strainer
- Flange Type: FPT
- Flange Connection: 1 1/2 in
- Coil: 120/60
- Coil Style: Leaded, Green LED Pilot Light
- Check Valve: None
- Valve Material: Standard Valve
Product Documents

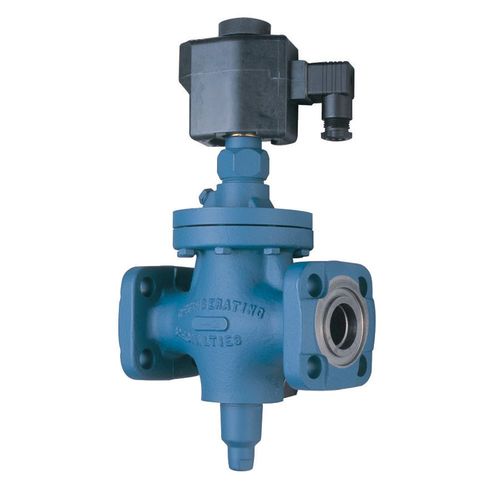

Parker’s S5A is a low pressure drop gravity closing valve ideal for medium temperature suction applications. The low-pressure drop provided by the S5A ensures that losses are kept to a minimum, which is especially important in refrigeration suction lines. This heavy-duty solenoid valve is suitable for Ammonia and other refrigerants, certain oils and other fluids approved for use in refrigeration. The S5A is a pilot operated semi-steel bodied valve. The valve may be opened by means of the manual opening stem for servicing or in case of electrical power failure. The Type S5A Solenoid Valve is furnished with FPT: Internal NPT (U.S. Standard Taper Pipe Thread), Socket Weld, Weld Neck or ODS (solders over copper tubing of given diameter) connections. The valve may be easily removed from between the flanges for servicing.
Features
- Standard Coil Housing Meets NEMA 3R and NEMA 4 - Rain Tight
- Coil Housing Surpasses NEMA Salt Spray Test
- Plunger-Needle Assembly Same for S4A, S5A, S6N, S6A, S8F
- Replaceable Piston Plug Assembly
- Molded Class “F” Coil Construction
- Pilot Light Available
- Stainless Steel Needle
- Manual Opening Stem
- MOPD 20.7 bar (300 PSIG)
- 27.6 bar (400 PSIG) maximum rated pressure (MRP)
CUSTOMER SERVICE
QUESTIONS?
Can't find what you are looking for? Give us a call today!
sales@frostpoint.net (262)-261-6100Parts
|
Item No. |
Description |
Qty. |
32mm (1-1/4") |
40mm (1-5/8") |
50mm (2") |
65mm (2-1/2") |
75mm (3") |
|
1 |
Knob |
1 |
|||||
|
3 |
O-Ring |
1 |
|||||
|
1, 3 |
Knob Kit |
1 |
|||||
|
. |
|||||||
|
6 |
Coil |
1 |
|||||
|
7A |
Sol. Tube Nut |
1 |
|||||
|
7B |
Sol. Tube Asm. |
1 |
|||||
|
8 |
Gasket |
1 |
|||||
|
7A, 7B, 8 |
Sol. Tube Kit |
||||||
|
9 10 |
Plunger/Needle Asm. Seat Asm. |
1 1 |
|||||
|
8,9,10 |
Plunger Seat Kit |
||||||
|
11 12 |
Adapter Asm. Gasket |
1 1 |
|||||
|
11,12 |
Adapter Kit |
||||||
|
31 |
Piston Plug |
1 |
|||||
|
12,31 |
Piston Plug Kit |
||||||
|
32 |
Man. Open Stem |
1 |
|||||
|
22 |
FlatWasher |
1 |
|||||
|
23 |
Stem Packing |
1 |
|||||
|
24 |
Packing Nut |
1 |
|||||
|
32,12,22,23 |
Opening Stem Kit |
||||||
|
22,23,24 |
Stem Packing Kit |
||||||
|
25 |
Gasket |
1 |
|||||
|
27 |
Seal Cap |
1 |
|||||
|
25,27 |
Seal Cap Kit |
||||||
|
28 |
Flange Gasket Pkg. |
12 |
|||||
|
15 |
Bolt Pkg. |
8 |
|||||
|
6 |
|||||||
|
8-10,12 |
|||||||
|
22,23,24 25,31,32 |
Sol. Repair Kit |
||||||
|
8,12,25,28 |
Sol. Gasket Kit |
||||||
