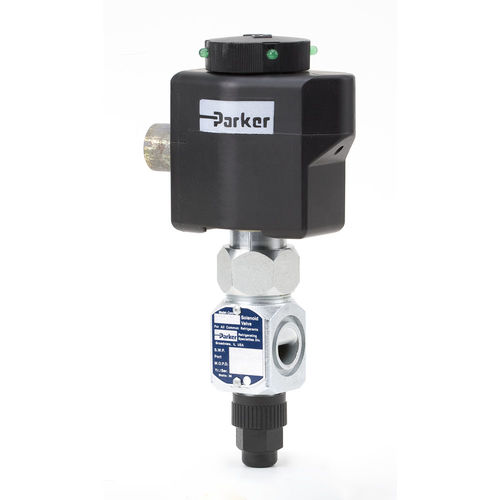

S6N 208 ST

$363.66

SKU: S6N05YX00D1XS
QTY:

ADD TO FAVORITES

Product Specs

  • Port Size: 5mm (3/16 in)
  • Coil Style: Leaded, Standard
  • Check Valve: None
  • Valve Material: Standard Valve
  • Coil: 208/60
  • Flange Type: No Flange
  • Flange Connection: None
  • Strainer: w/ Strainer
See All Options

Product Documents


Features

  • Standard Coil Housing Meets NEMA 3R and NEMA 4 - Rain Tight
  • Coil Housing Surpasses NEMA Salt Spray Test
  • Plunger-Needle Assembly Same for S4A, S5A, S8F, S6A
  • PTFE Seat- S6N (Replaceable)
  • Replaceable Piston Plug Assembly
  • Molded Class “F” Coil Construction
  • Same Coil Fits All Refrigerating Specialties Solenoid Valves
  • Pilot Light Available
  • Stainless Steel Needle
  • MRP 28 bar (400 psig)- S6N / S8F
  • MOPD 20.7 (300 psig)- S6N / S8F

CUSTOMER SERVICE

QUESTIONS?

Can't find what you are looking for? Give us a call today!

sales@frostpoint.net (262)-261-6100

Parts

Item

Description

Qty.

Kit Number

1

Knob

1

Only Available With Kit

3

O-Ring

1

Only Available With Kit

1, 3

Knob Kit

1

205237

6

Coll

1



7

8

7-8

Tube Assembly, Solenoid

Gasket

Tube Kit, Solenoid

1

1

1

Only Available With Kit

Only Available With Kit

201036

9

10

8-10
PlungedNeedle

Assembly Seat

Assembly Plunger/Seat Kit*

1

1

1

Only Available With Kit

Only Available With Kit

201630

9

8-9

Plunger/Noodle Assembly

Plunger Kit, Needle**

1

1

Only Available With Kit

201019

11

Body, S6N (includes Name Plate)

1

Not Available Separately

12

13

14

15

12-15

Stem, Manual Open

Washer, Flat

Packing, Stem

Nut, Packing

Stem Kit, Opening

1

1

1

1

1

Only Available With Kit

Only Available With Kit

Only Available With Kit

Only Available With Kit

201631

13

15

14

13-15

Washer, Flat

Nut, Packing

Packing, Stem

Packing Kit, Stem

1

1

1

1

Only Available With Kit

Only Available With Kit

Only Available With Kit

202100

16

17

16-17

Gasket

Seal Cap

Cap Kit, Seal

1

1

1

Only Available With Kit

Only AvailableWith Kit

202713

18

Flange Kit (Specify Flange Style & Connection Size) Includes 2 Flanges Only. Sold Separately

1

FK-13

19

20

21

19-20

19-20

Bolt

Nut

Gasket Package

Bolt Kit (S6N Without Strainer)

Soft Kit (S6N With Strainer)

2

2

 12

1

1

Only Available With Kit

Only Available With Kit

202078

201579

201576

8,16,21

Gasket Kit (includes 2 Flange Gaskets)

1

201632
