1 S7AL 120G
$758.67
SKU: S7L25NX00B3XSN
Product Specs
- Strainer: No Strainer
- Coil: 120/60
- Check Valve: None
- Valve Material: Standard Valve
- Flange Type: No Flange
- Flange Connection: None
- Coil Style: Leaded, Green LED Pilot Light
- Port Size: 25 mm (1 in)
Product Documents

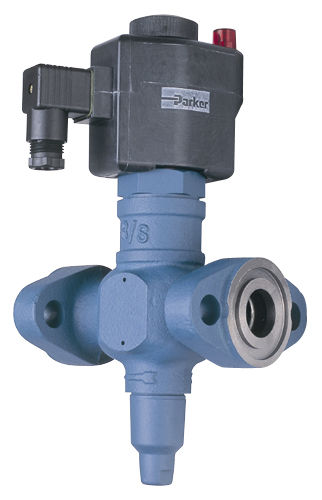

Parker’s S7 series solenoid valves are available in a low pressure drop version that are capable of opening with a pressure drop less than 1 psi across the valve. This feature makes them ideal for applications where low pressure drop is important, such as low pressure liquid feed lines. The S7 is a pilot operated, positive lift, cast iron bodied valve. The valve may be opened by means of the manual opening stem for servicing or in case of electrical power failure. The Type S7 Solenoid Valve is furnished with FPT Internal NPT (U.S. Standard Taper Pipe Thread), Socket Weld, Weld Neck or ODS (solder over copper tubing of given diameter) connections.
Features
- Standard Coil Housing Meets NEMA 3R and NEMA 4- Rain Tight
- Coil Housing Surpasses NEMA Salt Spray Test
- Molded Class “F” Coil Construction
- Pilot Light Available
- Stainless Steel Needle
- Manual Opening Stem
- Design Pressure (MRP): 27.6 bar (400 PSIG)
- Positive Lift, Held Open Electrically
CUSTOMER SERVICE
QUESTIONS?
Can't find what you are looking for? Give us a call today!
sales@frostpoint.net (262)-261-6100Parts
|
Item No. |
Description |
Qty. |
20mm (3/4") |
25mm (1") |
|
|
1 |
Knob |
1 |
|||
|
3 |
O-Ring |
1 |
|||
|
6 |
Coil |
1 |
|||
|
33 |
Tub Asm. |
1 |
|||
|
34 |
Gasket |
1 |
|||
|
35 |
Plunger Asm. |
1 |
|||
|
36 |
Plug Asm. |
1 |
|||
|
33,34 |
Tube Kit |
||||
|
34,35,36 |
Plug/Plunger Kit S7A |
||||
|
34,35,36 |
Plug/Plunger Kit S7AL |
||||
|
37 |
Man. Open Stem |
1 |
|||
|
22 |
Flat Washer |
1 |
|||
|
23 |
Packing, Stem |
1 |
|||
|
22,23,34,37 |
Opening Stem Kit |
||||
|
24 |
Nut, Packing |
1 |
|||
|
22,23,24 |
Stem Pkg. Kit |
||||
|
25 |
Gasket |
1 |
|||
|
27 |
Seal Cap |
1 |
|||
|
25,27 |
Seal Cap Kit |
||||
|
28 |
Flange Gasket Pkg. |
12 |
|||
|
25,28,34 |
S7A Gasket Kit |
||||
|
34 |
Gasket Pkg, Sol Tube |
5 |
