1/2 SV2 1/2SW 120/110 QD ST

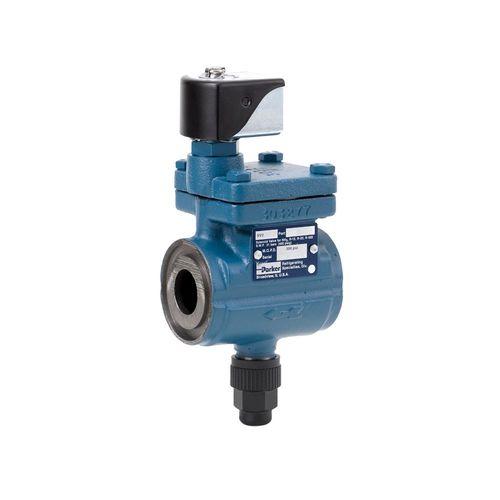

This compact, heavy duty, pilot operated, ductile iron bodied solenoid valve is suitable for Ammonia, and other refrigerants, certain oils and other fluids approved for use in refrigeration.
SKU: SV213YS13T4XSN
Product Specs
- Port Size: 13mm (1/2in.)
- Connection Size: 13 mm (1/2in.)
- Flange Type: SW (Socket Weld)
- Coil Type: 120AC~60Hz-110AC~50Hz-DIN Standard
- Strainer Type: With Strainer
Product Documents
Features
- Strong and compact ductile iron body
- Pilot operated
- Manual opening stem
- Serviceable from the top
- Maximum Opening Pressure Differential 20.7 bar (300 psig)
- Pilot light available
- Molded Class “H” coil construction
- Teflon seat
CUSTOMER SERVICE
QUESTIONS?
Can't find what you are looking for? Give us a call today!
sales@frostpoint.net (262)-261-6100Parts
|
Item No. |
Description |
Qty. |
13 mm(1/2") |
20mm (3/4") |
25mm (1") |
32mm (1-1/4") |
|
1 |
Coil |
1 |
ONLY WITH KIT |
|||
|
2 |
Sleeve, Coil Insert |
2 |
ONLY WITH KIT |
|||
|
3 |
Frame, Coil |
1 |
ONLY WITH KIT |
|||
|
4 |
Cover, Coil |
1 |
ONLY WITH KIT |
|||
|
5 |
Clip, Coil Cover |
ONLY WITH KIT |
||||
|
1 to 5 |
Coil & Hsg Kit |
ó |
SPECIFY COIL VOLTAGE AND VALVE TYPE |
|||
|
6 |
Solenoid Oper. Assembly |
1 |
ONLY WITH KIT |
|||
|
7 |
O-Ring (Not Shown) |
1 |
ONLY WITH KIT |
|||
|
8 |
Wrench |
ONLY WITH KIT |
||||
|
6 to 8 |
Solenoid Oper. Repair Kit |
ó |
||||
|
9 |
Seal Cap |
1 |
ONLY WITH KIT |
|||
|
10 |
O-Ring, Seal Cap |
1 |
ONLY WITH KIT |
|||
|
9 to 10 |
Seal Cap Kit (Discard Gasket) |
ó |
||||
|
11 |
Packing Nut |
1 |
ONLY WITH KIT |
|||
|
12 |
Washer, Flat |
1 |
ONLY WITH KIT |
|||
|
13 |
Packing, Stem |
1 |
ONLY WITH KIT |
|||
|
11 to 13 |
Stem Packing Kit |
ó |
||||
|
14 |
Manual Opening Stem |
1 |
ONLY WITH KIT |
|||
|
11 to 14 |
Manual Opening Stem Kit |
ó |
||||
|
15 |
Main Valve Plug Assembly |
1 |
ONLY WITH KIT |
|||
|
16 |
Cover Gasket |
1 |
ONLY WITH KIT |
|||
|
17 |
Bolt Package |
4 |
||||
|
15,16 |
Main Valve Plug Kit |
ó |
||||
|
18 |
Closing Spring |
1 |
ONLY WITH KIT |
|||
|
16,18 |
Closing Spring Kit |
ó |
||||
|
19 |
Top Cover |
1 |
ONLY WITH KIT |
|||
|
20 |
O-Ring |
1 |
ONLY WITH KIT |
|||
|
16,19,20 |
Top Cover Kit |
ó |
||||
|
21 |
Piston Retainer |
1 |
ONLY WITH KIT |
|||
|
22 |
Piston Plug Assembly |
1 |
ONLY WITH KIT |
|||
|
23 |
O-Ring |
1 |
ONLY WITH KIT |
|||
|
20,21,22,23 |
* Piston Plug Kit SV2 |
ó |
Not Required |
|||
|
20,21,22,23 |
* Piston Plug Kit SV2A |
ó |
202765 |
|||
|
24 |
Flange Gasket Package |
12 |
202078 |
|||
|
7,10,16,20,23,24 |
SV2, SV2A Solenoid Gasket Kit |
ó |
||||
|
SV2 Repair Kit |
ó |
|||||
|
SV2A Repair Kit |
ó |
|||||
