3/4 SV2 240/50 QD

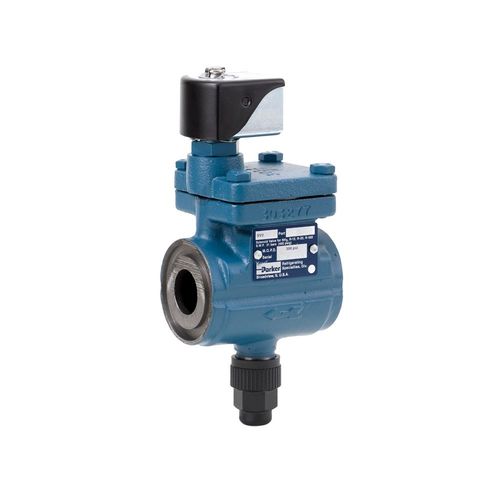

This compact, heavy duty, pilot operated, ductile iron bodied solenoid valve is suitable for Ammonia, and other refrigerants, certain oils and other fluids approved for use in refrigeration.
SKU: SV220NX00G4XSN
Product Specs
- Strainer Type: Without Strainer
- Flange Type: NF (No Flange)
- Connection Size: None
- Coil Type: 240AC~50Hz-DIN Standard
- Port Size: 20mm (3/4in.)
Product Documents
Features
- Strong and compact ductile iron body
- Pilot operated
- Manual opening stem
- Serviceable from the top
- Maximum Opening Pressure Differential 20.7 bar (300 psig)
- Pilot light available
- Molded Class “H” coil construction
- Teflon seat
