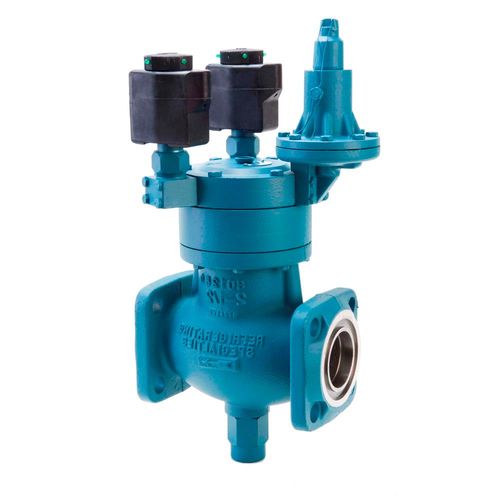

4 CK2D 3/8F 4WN B120/110

$3,010.17

MPN: CK2DA0BF10WP0T1NSN
SKU: CK2DA0BF10WP0T1NSN
QTY:

ADD TO FAVORITES

Product Specs

  • Pilot Connection Flange Type: FPT
  • Pilot Connection Size: 3/8 in
  • Strainer Type: No Strainer
  • Valve Material: Standard Valve
  • Plated: No Plating
  • Flange Type: WN
  • Solenoid Type: S6B
  • Coil Type: 110/50, Leaded, Standard
  • Port Size: 100mm (4 in)
  • Connection Size: 4 in

Product Documents


These piston type, gas pressure powered, normally open, heavy duty, cast iron bodied valves are built with control valve precision. All are equipped with flanges and manual lift stem. The 32mm (11/4") port size has a PTFE main seat; 40mm (1-5/8”) port and larger have a metal to metal seat. The CK-2 utilizes a spring to open and therefore requires no pressure drop to open. On suction line applications pressure drop is nominal; on flooded evaporators normal gravity circulation is unrestricted. Being pressure powered to close this valve can overcome sticking at low temperatures caused by the presence of viscous oil.

Features

  • Economical Solution to Evaporator Equalization after Defrost
  • Low Pressure Drop
  • Heavy Return Spring
  • Manual Opening Stem
  • Integrated S6B pilot solenoids
  • Standard Coil Housing Meets NEMA 3R and 4 - Rain Tight
  • Normally Open
  • Maximum Rated Pressure (MRP): 27.6 bar (400 psig)

CUSTOMER SERVICE

QUESTIONS?

Can't find what you are looking for? Give us a call today!

sales@frostpoint.net (262)-261-6100

Parts

CK-2D Dual Position Gas Powered Suction Stop Valve Parts

Number

Description

QTY

Parker Part Number

2 in.

2-1/2 in.

3 in.

4 in.

16

Gasket, Body

1









17

Piston Plug

1









17,16

Piston Plug Kit

1

201139

201117

201127

201226

19

Opening Stem

1









22

Washer, Flat

1









23

Packing, Stem

1









19,22,23

Opening Stem Kit

1

201133

201118

201216

201213

25

Gasket, Seal Cap

1









26

Seal Cap

1









25,26

Seal Cap Kit

1

202110

202114

202111

23

Packing, Stem

1









24

Packing Nut, Stem

1









23,24

Packing Kit

1

202100

202101

10

Gasket, Adapter

1









11

Piston, Top

1









12

Spacer, Piston

3









13

Set Screw, Piston

1









14

Nut, Piston

1









10-14

Piston Kit

1

208305

208306

208307

208308

6

Gasket, Cover

1









8

Bolt, Adapter

6









10

Gasket, Adapter

1









11

Piston, Top

1









12

Spacer, Piston

3









13

Set Screw, Piston

1









14

Nut, Piston

1









15

Bore Plate

1









16

Gasket, Body

1









20

Bolt, Body

8









6,8,10-16,20

Piston/Bore Plate Kit

1

208409

208410

208411

208412

3

O-ring

4









4

Bolt, Cover

8









5

Cover

1









6

Gasket, Cover

1









8

Bolt, Adapter

8









9

Adapter

1









10

Gasket, Adapter

1









3-6,8-10

Adapter/Cover Kit

1

208391

208392

208393

208394

2

Bolt

4









3

O-ring

2









2,3

Bolt/O-ring Kit

1

201574

201574

201574

201574

1

Plunger/Tube Asm

1









21

Solenoid Tube O-Ring

1









29

Seat

1









1,21,29

Plunger/Seat Kit

1

204707

204707

204707

204707

3,6,10,16,21,25

Gasket/O-ring Kit

1

208317

208318

208319

208320
