4 CK2 3/8F

$2,526.81

MPN: CK2A0F10X00NSN
SKU: CK2A0F10X00NSN
QTY:

ADD TO FAVORITES

Product Specs

  • Pilot Connection: 3/8 in
  • Strainer: No Strainer
  • Valve Material: Standard Valve
  • Plated: No Plating
  • Flange Type: No Flange
  • Flange Connection: None
  • Port Size: 100mm (4 in)
See All Options

Product Documents

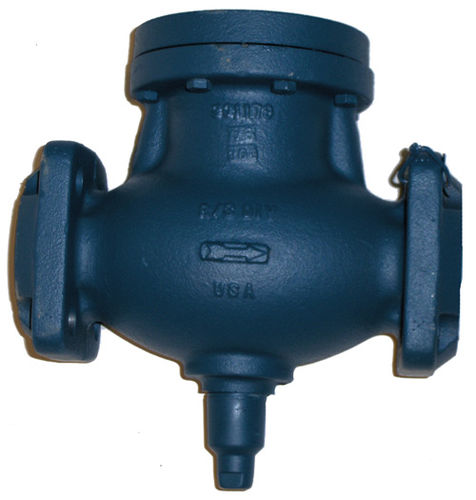

These piston type, gas pressure powered, normally open, heavy duty, cast iron bodied valves are built with control valve precision. All are equipped with flanges and manual lift stem. The 32mm (11/4") port size has a PTFE main seat; 40mm (1-5/8”) port and larger have a metal to metal seat. The CK-2 utilizes a spring to open and therefore requires no pressure drop to open. On suction line applications pressure drop is nominal; on flooded evaporators normal gravity circulation is unrestricted. Being pressure powered to close this valve can overcome sticking at low temperatures caused by the presence of viscous oil.

Features

  • Low Pressure Drop
  • Heavy Return Spring
  • Manual Opening Stem
  • Use in Vertical or Horizontal Line
  • Normally Open
  • Main Valve Can be Installed on Side
  • Maximum Rated Pressure (MRP): 27.6 bar (400 psig)

CUSTOMER SERVICE

QUESTIONS?

Can't find what you are looking for? Give us a call today!

sales@frostpoint.net (262)-261-6100

Parts

ITEM NO.

DESCRIPTION

OTY.

32mm (1-1/4")

40mm (1-5/8")

50mm (2")

65mm (2-1/2")

75mm (3")

100mm (4")

125mm (5")

150mm (6")

5 4

PISTON PLUG ASM COVERGASKET

1 1



4. 5

PISTON PLUG KIT



201205

201140

201139

201117

201121

201226

201227

202491

11 10 9

MAN. OP G STEM FLAT WASHER STEM PACKING

1 1 1



11, 10, 9

OPENING STEM KIT



201514

201133

201133

201118

201216

201213

202363

202364

3

TOP COVER

1



3. 4

COVER KIT



200669

200673

200673

200690

200676

200677

200678

200681

6 7

SEAL CAP GASKET

1 1



6. 7

SEAL CAP KIT



202110

202110

202110

202144

202111

202111

202111

202111

8

PACKING NUT

1



10, 9, 8

PACKING KIT



202100

202100

202100

202100

202101

202101

202101

202101

22

OPENING SPRING

1

301528

301490

301490

301494

301505

301500

310511

310534

15

FLANGE GASKET

2



FLANGE GSKT PKG.

12

202080

202081

202081

202082

202083

202084



FLANGE GSKT PKG.

2



202085

202086

2

COVER SCREW

8

202541

202540

202540

202540



202538



COVER SCREW

6



202252

202252



COVER SCREW

10



202539

18 17

BOTTOM GASKET BOTTOM CAP

1 1



18, 17

BOTTOM CAP KIT



200724

200755

16

BOTTOM CAP BOLT

6



202250



8



202539

39

DISC STRAINER ASM

1



SEE NOTE BELOW

NOTE:

ITEM #39 PILOT LINE DISC STRAINER ASSEMBLY IS AVAILABLE IN THE FOLLOWING CONNECTION STYLES: 3/8 FPT, SW & WN; 1/2 FPT, SW & WN; 3/4 FPT, SW, & WN; 3/8 ODS & 7/8 ODS. 3/8 FPT WILL BE SUPPLIED UNLESS OTHERWISE SPECIFIED.
