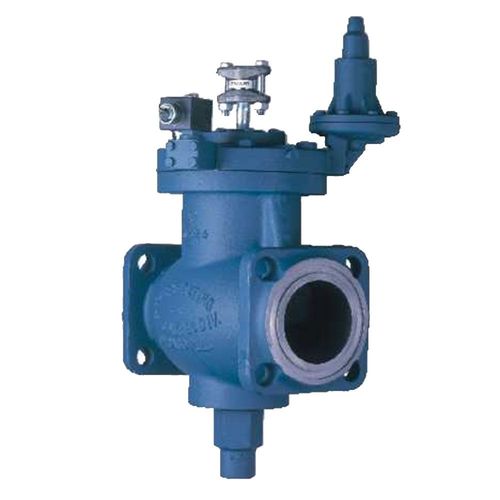

1-1/4 CK5 3/8F B120/110
SKU: CK532BF10X00T1NSN
Product Specs
- Port Size: 32mm (1 1/4 in)
- Solenoid Type: S6B
- Pilot Connection Flange Type: FPT
- Pilot Connection: 3/8 in
- Coil: 110/50 ~ 120/60
- Coil Style: Leaded, Standard
- Strainer: No Strainer
- Valve Material: Standard Valve
- Plated: No Plating
- Flange Type: No Flange
- Flange Connection: None
Product Documents
These valves are piston-type, gas powered, and normally open. They are heavy duty, semi-steel bodied valves that are built with control precision. The 32mm (1-1/4”) port size has a PTFE main seat, the 40mm (1-5/8”) port and larger have a metal to metal seat, the 100mm and 125mm (5” and 6”) port size versions of this unique suction stop valve utilize a larger capacity, remotely piped pilot operated solenoid, the R/S type S8F. In addition, the pilot regulator for these two larger sized valves is mounted on top of valve, with the strainer disc assembly piped into the side of the adapter.
Features
- Normally Open
- Features a pilot regulator to ensure pressure equalization in the event of a power loss
- Low Pressure Drop
- Manual Opening Stem
- Integrated Pilot Solenoid on 32mm to 100mm (1-1/4” to 4”) Sizes
- Use in Vertical or Horizontal Line
- Valve may be mounted on its side
- Design Pressure (MRP): 27.6 bar (400 psig)
CUSTOMER SERVICE
QUESTIONS?
Can't find what you are looking for? Give us a call today!
sales@frostpoint.net (262)-261-6100Parts
|
REPAIR KITS CK-5 |
||||||||||||
|
ITEM |
DESCRIPTION |
1-1/4 |
1-5/8 |
2 |
2-1/2 |
3 |
4 |
|||||
|
1,2 |
Cap Kit |
|||||||||||
|
3-6,12-15 |
Spring Stem Kit |
|||||||||||
|
16,17,19 |
Diaphragm Kit |
|||||||||||
|
16-19 |
Seat Kit, Pilot |
|||||||||||
|
20-22 |
Cover Kit |
|||||||||||
|
22-24 |
Adapter Kit |
|||||||||||
|
24,25 |
Piston Plug Kit |
|||||||||||
|
26 |
Spring |
|||||||||||
|
27,31,32 |
Stem Kit |
|||||||||||
|
30-32 |
Packing Kit |
|||||||||||
|
33,34 |
Cap Kit |
|||||||||||
|
39 |
Disc Strainer Assembly |
See Note Below |
||||||||||
|
41-43 |
Solenoid Repair Kit |
|||||||||||
|
46,50 |
Bolt / "O" Ring Kit |
|||||||||||
|
49,50 |
Bolt / "O" Ring Kit |
|||||||||||
|
50 |
"O" Ring Kit |
|||||||||||
|
NOTE: Item 39 is available in various connection sizes and styles. 3/8 FPT will be supplied unless otherwise specified. |
||||||||||||
|
REPAIR KITS CK-5 |
|||
|
Item |
Description |
5" |
6" |
|
1,2 |
Cap Kit |
||
|
3-6,12-15 |
Spring Stem Kit |
||
|
16,17,19 |
Diaphragm Kit |
||
|
16-19 |
Seat Kit, Pilot |
||
|
23-24 |
Adapter Kit |
||
|
24,25 |
Piston Plug Kit |
||
|
28 |
Spring |
||
|
27,31,32 |
Stem Kit |
||
|
30-32 |
Packing Kit |
||
|
33,34 |
Cap Kit |
||
|
35,37 |
Bottom Cover |
200755 |
|
|
39 |
Disc Strainer Assembly |
See Note Below |
|
|
NOTE: Item 39 is available in various connection sizes |
|||
|
and styles. 3/8 FPT will be supplied unless otherwise |
|||
|
specified. For a parts breakdown of the remote S8F pilot |
|||
|
solenoid, see R/S Bulletin 30-91E. |
|||
