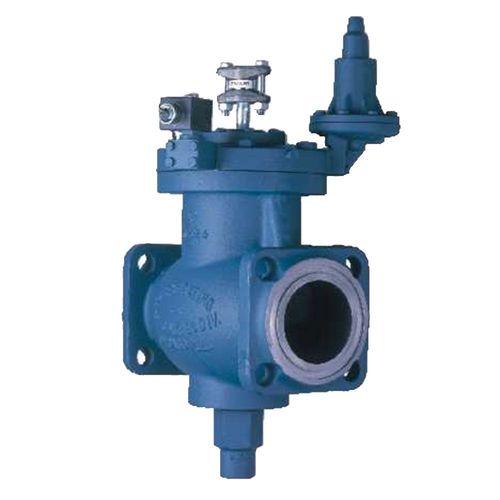

2 CK5 3/8F A120

$2,089.05

MPN: CK550AF10X00B1NSN
SKU: CK550AF10X00B1NSN

Product Specs

Pilot Connection Flange Type: FPT
Pilot Connection: 3/8 in
Coil Style: Leaded, Standard
Strainer: No Strainer
Valve Material: Standard Valve
Plated: No Plating
Flange Type: No Flange
Flange Connection: None
Solenoid Type: S6A
Coil: 120/60
Port Size: 50mm (2 in)

Product Documents

These valves are piston-type, gas powered, and normally open. They are heavy duty, semi-steel bodied valves that are built with control precision. The 32mm (1-1/4”) port size has a PTFE main seat, the 40mm (1-5/8”) port and larger have a metal to metal seat, the 100mm and 125mm (5” and 6”) port size versions of this unique suction stop valve utilize a larger capacity, remotely piped pilot operated solenoid, the R/S type S8F. In addition, the pilot regulator for these two larger sized valves is mounted on top of valve, with the strainer disc assembly piped into the side of the adapter.

Features

Normally Open
Features a pilot regulator to ensure pressure equalization in the event of a power loss
Low Pressure Drop
Manual Opening Stem
Integrated Pilot Solenoid on 32mm to 100mm (1-1/4” to 4”) Sizes
Use in Vertical or Horizontal Line
Valve may be mounted on its side
Design Pressure (MRP): 27.6 bar (400 psig)

CUSTOMER SERVICE

QUESTIONS?

Can't find what you are looking for? Give us a call today!

sales@frostpoint.net (262)-261-6100

Parts

REPAIR KITS CK-5
ITEM	DESCRIPTION	1-1/4		1-5/8		2		2-1/2		3		4
1,2	Cap Kit	202110		202110		202110		202110		202110		202110
3-6,12-15	Spring Stem Kit	202006		202006		202006		202006		202006		202006
16,17,19	Diaphragm Kit	200770		200770		200770		200770		200770		200770
16-19	Seat Kit, Pilot	202000		202000		202000		202001		202001		202001
20-22	Cover Kit	204701
22-24	Adapter Kit	204702	204703		204703		204704		204705		204706
24,25	Piston Plug Kit	204750	204749		204757		204756		204755		204760
26	Spring	301528	301490		301490		301494		301505		301500
27,31,32	Stem Kit	201514	201133		201133		201118		201216		201213
30-32	Packing Kit	202100	202100		202100		202100		202101		202101
33,34	Cap Kit	202110	202110		202110		202144		202111		202111
39	Disc Strainer Assembly	See Note Below
41-43	Solenoid Repair Kit	204707
46,50	Bolt / "O" Ring Kit	201574
49,50	Bolt / "O" Ring Kit	201572
50	"O" Ring Kit	202424
NOTE: Item 39 is available in various connection sizes and styles. 3/8 FPT will be supplied unless otherwise specified.

REPAIR KITS CK-5
Item	Description	5"	6"
1,2	Cap Kit	202110	202110
3-6,12-15	Spring Stem Kit	202006	202006

16,17,19	Diaphragm Kit	200770	200770
16-19	Seat Kit, Pilot	202001	202001
23-24	Adapter Kit	204753	204754
24,25	Piston Plug Kit	204759	204758
28	Spring	301511	301534
27,31,32	Stem Kit	202363	202364
30-32	Packing Kit	202101	202101
33,34	Cap Kit	202111	202111
35,37	Bottom Cover	200724	200755
39	Disc Strainer Assembly	See Note Below
NOTE: Item 39 is available in various connection sizes
and styles. 3/8 FPT will be supplied unless otherwise
specified. For a parts breakdown of the remote S8F pilot
solenoid, see R/S Bulletin 30-91E.
