8 S9W 1/2S

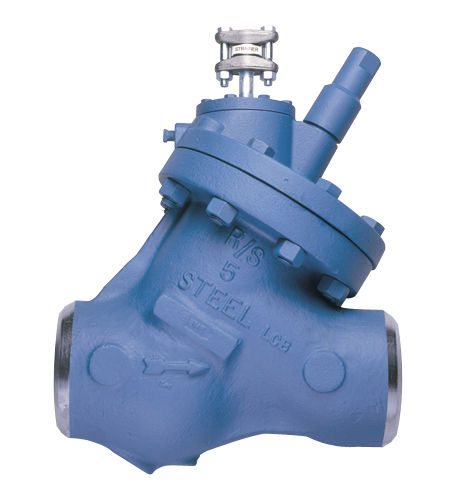

These heavy duty, cast steel bodied (ASTM No. A352 Grade LCB), spring closing solenoid valves weld directly in the line and do not require flanges. They are for control of Ammonia, R-12, R-22 and R-502, other common refrigerants, certain oils and other fluids approved for use in refrigeration valves.

$20,164.32

SKU: S9WA3S13SN
QTY:

ADD TO FAVORITES

Product Specs

  • Port Size: 100mm (8 in)
  • Pilot Assembly: With S9 Pilot Assembly
See All Options

 These heavy duty, cast steel bodied (ASTM No. A352 Grade LCB), spring  closing solenoid valves weld directly in the line and do not require flanges. They are for control of Ammonia, R-12, R-22 and R-502, other common refrigerants, certain oils and other fluids approved for use in refrigeration valves. S9W is most frequently used in a low temperature suction line in which pressure drops must be kept to a minimum. They can also be used in hot gas or liquid lines, provided there is always a refrigerant pressure available in the system for external pressure operation of the valve that is 0.71 bar (10 psi) above the valve upstream pressure.



Features

· Cast Steel Body-Strong, Light Weight.

· Welds Directly In The Line-No Flanges.

· Removable Seat-Serviceable From Top Side.

· Pilot Operated

· Single Coil Size-Same As Most Other R/S Valves.

· Design Pressure (MRP):27.6 bar (400 psig)

· Maximum Opening Pressure Difference (MOPD):21 bar (300 psig)

· Manual Opening Stem

· PTFE Pilot Seat

· Streamlined Fluid Flow Pattern

· Pilot Solenoid Parts Are Same As Used With Most Other R/S Solenoids
