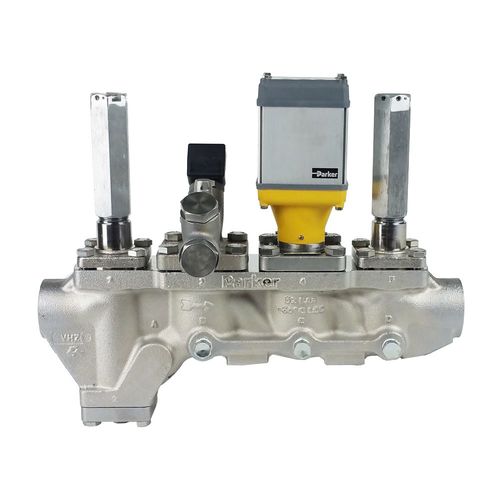

3/4 PVS5-S4 PEV HV 1SW 120G
The PVS weld-in valve stations are designed to simplify valve installation by minimizing the number of welds required for each weld group. The PVS features up to 6 functions in a single housing
$5,829.96
SKU: PVS5W3S4L9X1B31H
Product Specs
- Port Size: 20mm (3/4 in)
- Connection Size: 1 in
- Position 1 & 2: HV/Strainer
- Position 3 Regulator Variation: None
- Final Station: Hand Valve
- Pressure Range Bar (psig): No Range
- Range Option: No Range Option
- Set Point: No Set Point
- Range: No Range
- Position 3 Control: Solenoid
- Capacity Plug: Full
- Connection Type: SW
- Coil: 120/60
- Coil Style: Leaded, Green LED Pilot Light
- Positions: 5 Positions
- Expansion Valve Option Capacity: Full
Product Documents
The PVS is an innovative design which combines several different functions into one compact valve station. It was designed for simplified installation as well as to overcome corrosion issues encountered in harsh environments by utilizing plated and stainless steel components. Being weld-in, the valves reduce potential for connection leaks. Since all the shut-off and control valves are top mounted the PVS can be easily serviced with standard tools.
Features
- Suitable for ammonia, CO2 and other common refrigerants
- Features multiple functions in a single housing
- Plated steel housing increases product life cycle
- Overall weight reduction up to 50% compared to traditional flanged products
- Interchangeable with other P-Series Offerings
- Coil options to meet various applications
- Serviceable from the top using standard tools
- Top mounted shut-off valves eliminates service issues
- Lock out seal caps
- Complies with ASME B31.5 and 16.34, PED 2014/68/EU
