3/4 PVS4-A4 RA 65% HV 3/4SW

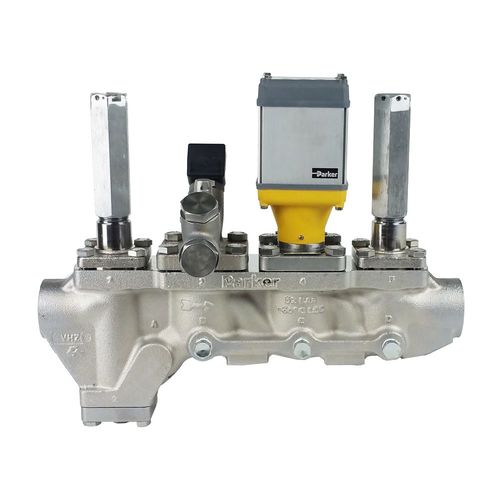

The PVS weld-in valve stations are designed to simplify valve installation by minimizing the number of welds required for each weld group. The PVS features up to 6 functions in a single housing
$1,560.66
SKU: PVS4W3S3L0A2XXNHAXST
Product Specs
- Positions: 4 Positions
- Port Size: 20mm (3/4 in)
- Position 1 & 2: HV/Strainer
- Capacity Plug: 0.65
- Coil: No Coil
- Coil Style: No Coil Style
- Expansion Valve Option Capacity: N/A for the four Postion Station Valve
- Final Station: Hand Valve
- Range Option: No Range Option
- Set Point: No Set Point
- Range: No Range
- Connection Type: SW
- Connection Size: 3/4 in
- Position 3 Control: Single Inlet Regulator
- Pressure Range Bar (psig): 0.35 to 10 (5 to 150)
- Position 3 Regulator Variation: No Solenoid; Regulator Only
Product Documents
The PVS is an innovative design which combines several different functions into one compact valve station. It was designed for simplified installation as well as to overcome corrosion issues encountered in harsh environments by utilizing plated and stainless steel components. Being weld-in, the valves reduce potential for connection leaks. Since all the shut-off and control valves are top mounted the PVS can be easily serviced with standard tools.
Features
- Suitable for ammonia, CO2 and other common refrigerants
- Features multiple functions in a single housing
- Plated steel housing increases product life cycle
- Overall weight reduction up to 50% compared to traditional flanged products
- Interchangeable with other P-Series Offerings
- Coil options to meet various applications
- Serviceable from the top using standard tools
- Top mounted shut-off valves eliminates service issues
- Lock out seal caps
- Complies with ASME B31.5 and 16.34, PED 2014/68/EU
