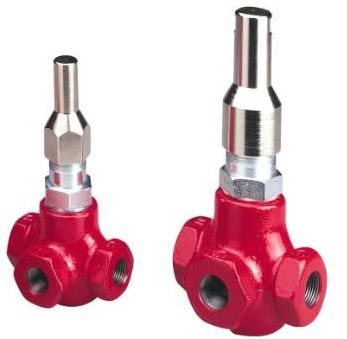

SFVL 805 1x1-1/4 NFPT 175PSI

The SFVL safety valves are backpressure dependent pressure relief valves. These are designed for protection of vessels and other components against excessive pressure. These valves are recommended as an external and internal safety relief valve in refrigeration plants. These valves are manufactured according to strict quality demands and safety requirements for refrigeration installations, as specifi ed in many markets and comply with ASHRAE Addendum15C-2000. These valves are manufactured in accordance with the ASME Quality Control Procedures and stamped with the UV symbol. They are certifi ed by the United States National Board of Boiler & Pressure Vessel Inspectors and are stamped with the NB symbol
$473.21

MPN: 148F8030
SKU: 148F8030
QTY:

ADD TO FAVORITES

Product Specs

  • Pressure Setting PSIG/BAR: 175 psig (12.0 bar)
  • Outlet Connection: 1-1/4" (32mm) NFPT
  • Inlet Connection: 1" (25mm) NFPT
  • Type: SFVL 805

Product Documents


Features

  • Tefl on seats mated with the stainless steel multiple crown rings which provide a reliable sealing. The triple crown sealing rings are located at slightly diff erent heights in order to provide compound sealing ability with the mating tefl on ring.
  • Special extra lift, pop-open feature in order to provide a high relief capacity.
  • A four-wing guided, stainless steel upper seat provides an excellent guidance for the high lift and reseating action.
  • A spring and seat design which provides for a concentric and axial spring force, loads the upper seat uniformly and maintains a tight seal.
  • All relief valves come with an installation tag and cable wire. Each valve’s identifi cation tag has information regarding the catalogue number, month and year of manufacture, set pressure, inlet pipe size and capacity for AIR in units of SCFM. The tag is fastened with drive rivets for security.
  • Relief valves are subject to 100% factory testing through three separate test sequences to verify quality and set pressure before being factory sealed for security.
