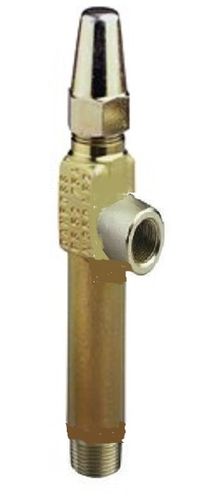

I-PACK(20) SNV-ST 1/4FPT-1/4MPT L100
SNV-ST and SNV-SS valves are designed to meet all industrial refrigeration application requirements. Designed as service valves they provide favorable flow characteristics.
$55.66
MPN: 148B4232
SKU: 148B4232
SKU: 148B4232
Product Specs
- Pack Qty: Bulk Pack
- Valve Type: SNV-ST
- Valve Material: Cold Resistant steel with Zinc Chromate Coating
- Connection Size: Bottom 1/4" MPT x Side 1/4" FPT (Long Neck)
Product Documents
Features
- Applicable to HCFC, nonflammable HFC, R717 (Ammonia) and R744 (CO2).
- Suitable for "heavy duty" industrial applications having a very sturdy and safe design including high pressures and wide temperature range.
- The SNV-ST and SNV-SS valves have back seating (metal to metal).
- Compact and light valve for easy handling and installation
- No special flow direction required.
- Provide high flow characteristics.
- Each valve type is clearly marked with type and size.
- Housing and bonnet material is low temperature steel (stainless steel for SNV-SS) according to requirements of the Pressure Equipment Directive and other international classification authorities.
- Valve safety is enhanced with the spindle being secured such that it cannot be unscrewed.
- Max. operating pressure: 52 bar g / 754 psig Valves for higher operating pressure available on request
- Full temperature range: -60 – 150 °C / -76 – 302 °F
- Classification: DNV, CRN, BV, EAC etc.
