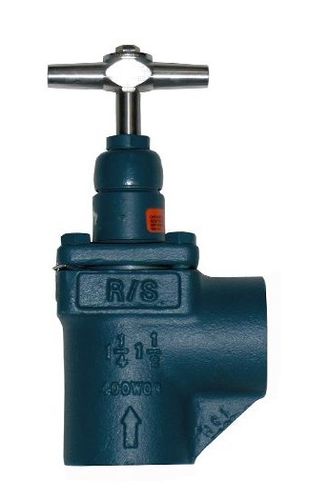

3/4SW ANGLE EXP XB HW

Features

• ASTM 352 LCB Cast Steel Body (1/4” thru 2”)
• Maximum Safe Working Pressure 400 PSIG
• Fluid Temperature Range: -50°F to +300°F
• 300 Series Stainless Steel Stem
• 300 Series Stainless Packing Nut
• Optional Stainless Steel Bonnet Bolts
• Reliable Back Seating
• Bolted Bonnets
• 25% Carbon Filled PTFE Seat (1/4” thru 2”)
• Globe Body - Tee and Angle Styles
• Extended Bonnets For Thicker Insulation Optional
• Body Style: Angle
• Port Size: 20mm (3/4 in)
• Connection Style: Socket Weld
• Bonnet Style: Extended Bonnet
• Handle Style: T-Handle
• Valve Finish: Painted
