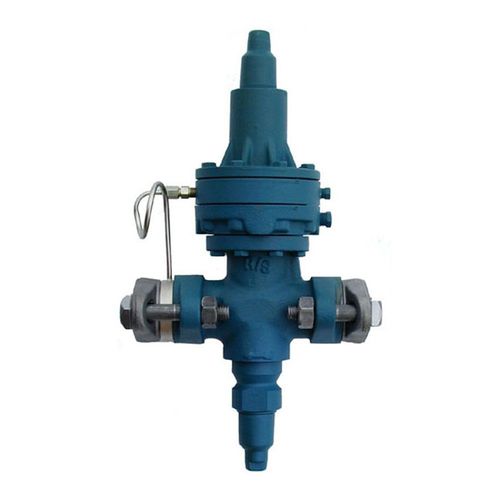

1 A4ADJ RA 1SW 120G QD 4-20MA MODULE
$5,945.67
MPN: A462A250XXB4S25B6ANXSN
SKU: A462A250XXB4S25B6ANXSN
SKU: A462A250XXB4S25B6ANXSN
Product Specs
- Range: 0.35 to 10 (5 to 150)
- Reduced Capacity: Full Capacity
- Low Set Point: XX
- High Set Point: 4.8 (70)
- Flange Type: SW
- Coil: 120/60
- Coil Style: DIN, Green LED Pilot Light
- Motor/IO Module: 4-20 mA
- Strainer: No Strainer
- Check Valve: None
- Valve Material: Standard Valve
- Plated: No Plating
- Port Size: 25mm (1 in)
- Flange Connection: 1 in
Product Documents
Features
- Pilot operated characterized Modulating Plug for precise control
- Suitable for all common refrigerants and oil
- 27.6 bar (400 psig) design pressure (MRP)
- Flanges for threaded or welded steel pipe and copper tube (copper not for ammonia)
- Interchangeable parts
- Easy to service
- Many control variations are possible with the use of a few Modules and kits.
- Stainless Steel Diaphragm
- Manual Opening Stem
- Chrome Plated Pilot Seat
