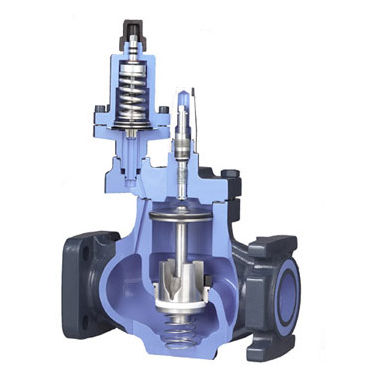

5"(125MM)DUAL PRESS,BW,RG B/B CE-CATIII MODH.EF102
These advanced-design, strong-bodied, precision manufactured MODULAR regulators are superior in their ability to overcome dirt and sticky oil during opening and tight closing. Models are available for nearly every control function requirement of industrial ammonia and commercial halocarbon refrigeration. These regulators are ideal for cold storage plants, poultry plants, meat packing, fish processing, freezers, ice plants, breweries, bottling plants, heat recovery units, petrochemical plants, pharmaceutical plants, supermarkets, and many others.
$4,804.20
SKU: HA4WD/54E
Product Specs
- Reduced Port Plug: Full Port
- Pilot Solenoid Opening: Normally Closed
- Variation: Dual
- Model: HA4W
- Range: Range B, 30 to 300 psig (2 to 21 bar g)/Range B, 30 to 300 psig (2 to 21 bar g)
- Port Size: 5" (125mm)
- Options: BW
- Explosion Proof: Stadnard Coil
- Refrigerant Type: All Other Refrigerants
Product Documents
Features
- 3/4" thru 6" flanged and weld-in
- Manual opening stem
- Various models for control of temperature, inlet, outlet or differential pressure
- Control modules (pilots) available to enable one regulator to perform several functions
- Wide range of pressure settings
- Electric shut-off, dual or wide opening
- Safe working pressure 400psig (28 bar), 600 psig (40 bar) for CO686
- Operating temp -65ºF to 240ºF (-50º to 116ºC)
- CSA, CRN, CE
