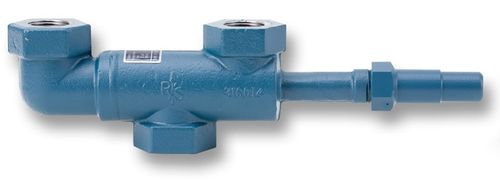

MNFLD, 1/2 M1 INLINE PLTD
$312.67
MPN: 507107
SKU: 507107
SKU: 507107
Parker's Refrigerating Specialties Division offers two types of manifolds for use in conjunction with their full line of Safety Relief Valves. The M1 Inline Manifold comes in sizes ranging from 1/2" to 1-1/4" (13mm to 20mm), and it is for use with the SR and SRH Relief Valves. The M2, M3 and M4 Dual Stop Manifolds are for use with Parker's H2, H3, H4 and H5 Relief Valves, and they are available from 3/4" to 1-1/4" (20mm to 32mm). All Safety Relief Manifolds are designed to comply with ASHRAE and IIAR standards.
Features
- MATERIAL: Body: Carbon Steel, Stem: Stainless Steel
- MAXIMUM WORKING PRESSURE (BARG): 27.6
- MAXIMUM WORKING PRESSURE (PSIG): 400
- MINIMUM OPERATING TEMPERATURE (F): -40
- MAXIMUM OPERATING TEMPERATURE (F): 300
- MINIMUM AMBIENT TEMPERATURE (F): -20
- MAXIMUM AMBIENT TEMPERATURE (F): 200
