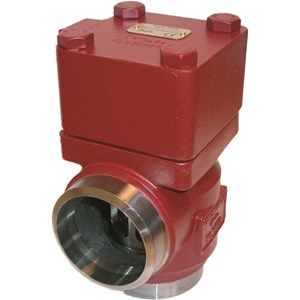

POV 2150 BUTT WELD, ANSI DN80 ANG
The POV pilot operated safety valve is used in conjunction with the BSV back pressure independent safety valve and is specifically designed for protecting compressors against excessive pressure.
$1,925.33
MPN: 148F3034
SKU: 148F3034
SKU: 148F3034
Product Specs
- Inlet Connection: 3" (80 mm)
- Outlet Connection: 3" (80 mm)
- Connection Style: Buttweld ANSI DN 80
- Model Number: POV 2150
Product Documents
Features
- Applicable for Refrigerants HCFC, HFC, R717 (Ammonia, R744 (CO2)
- The Pilot Operated Internal Safety Valve System POV + BSV is available in sizes from DN 40 to DN 80
- POV + BSV is an internal safety system thus eliminating the risk of refrigerant leakage to the atmosphere.
- The system renders full protection of the compressor even on increasing back pressure
- The pilot operated safety valve (main valve) has a very large capacity even with high back pressure when compared to direct operating back pressure independent safety valves
