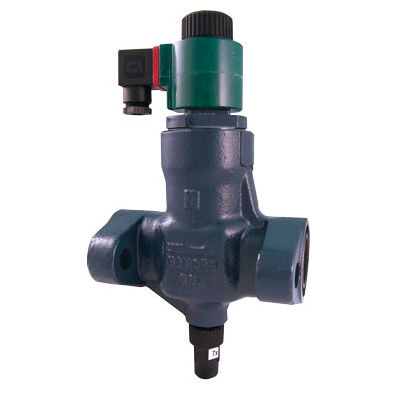

Hansen HS7 1" Solenoid Valve 1", Normally Open, SW - DIN Coil with Socket, 230V
This flanged, heavy duty, pilot-operated, industrial refrigeration solenoid valve controls the flow of refrigerant. When electrically energized, a slight pressure difference across the valve causes it to open wide; when de-energized, a spring promptly closes the main Teflon seat to stop all flow in the arrow direction on the valve body.
$918.84
SKU: CHS7/1SW11D
Product Specs
- Valve Opening: Normally Closed
- Valve Finish: Stainless Steel
- Strainer: Less Strainer
- Voltage: 230V
- Flange Size Connection: 1" (25mm)
- Model: HS7
- Port Size: 1" (25mm)
- Flange Style Connection: SW (Socket Weld)
- Refrigerant: CO2
- Coil Connection Style: DIN Coil with Socket
Product Documents
Features
- Stainless Steel Piston
- Stainless Steel Closing Spring.
- Teflon Disc
- Tapered Seat
- Manual Opening Stem
- Wireless Pilot Lights
- Vertical or Horizontal installation
- Heavy Duty Pilot Operation
