Port Size
Strainer
Flange Type
Flange Connection
Coil
- 115/50 (6)
- 120 EXT (2)
- 120/60 (89)
- 208/60 (6)
- 230/50 (24)
- 24 (10)
- 240/50 (2)
- 240/60 (21)
- 48 (1)
- M (1)
- No Coil, AC (23)
- No Coil, DC (2)
Coil Style
- DIN, CE Approved (18)
- DIN, Green LED Pilot Light (11)
- DIN, Red LED Pilot Light (6)
- DIN, Standard (21)
- Leaded, Green LED Pilot Light (25)
- Leaded, Red LED Pilot Light (14)
- Leaded, Standard (67)
- No Coil Style (25)
Check Valve
Valve Material

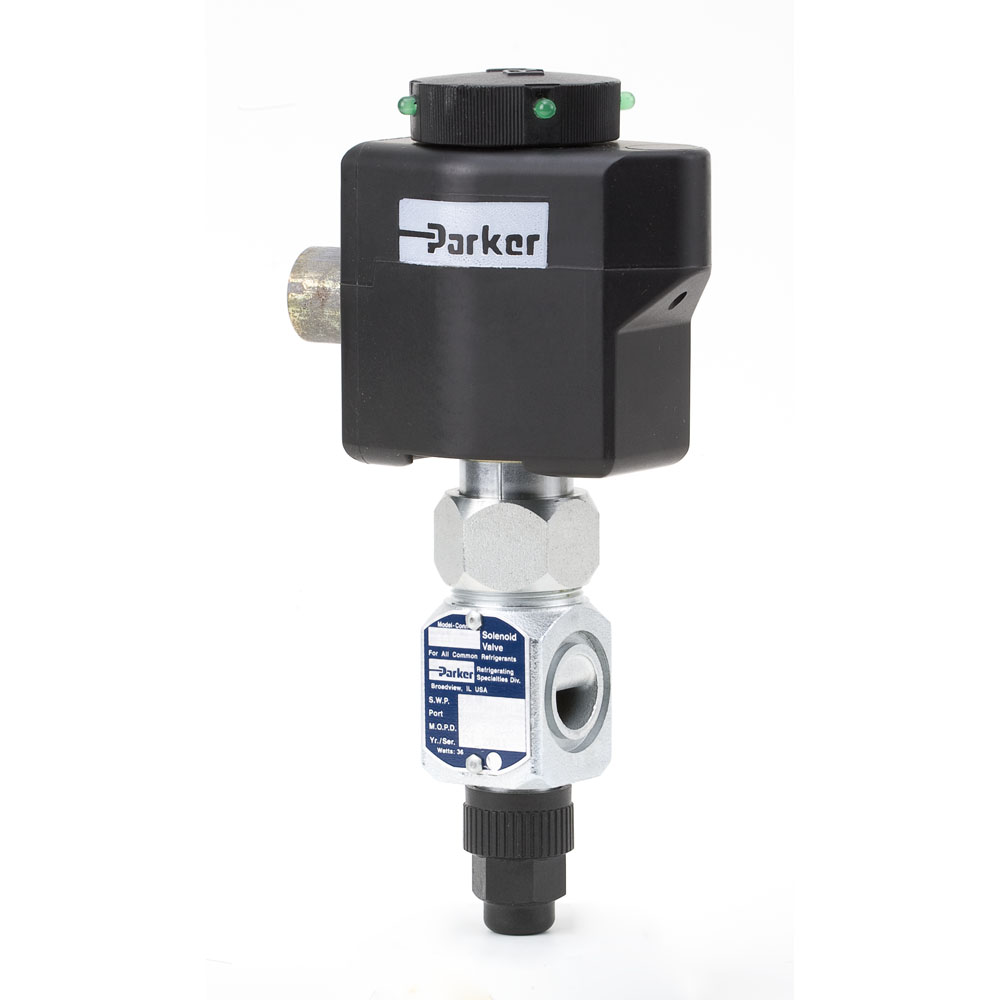

Parker S6N Solenoid Valve Port Size 5mm (3/16")
Parker S6N Solenoid Valve Port Size 5mm (3/16")
Part Kits
|
Item |
Description |
Qty. |
Kit Number |
|
1 |
Knob |
1 |
Only Available With Kit |
|
3 |
O-Ring |
1 |
Only Available With Kit |
|
1, 3 |
Knob Kit |
1 |
|
|
6 |
Coll |
1 |
|
|
7 8 7-8 |
Tube Assembly, Solenoid Gasket Tube Kit, Solenoid |
1 1 1 |
Only Available With Kit Only Available With Kit |
|
9 10 8-10 |
PlungedNeedle
Assembly Seat
Assembly Plunger/Seat Kit*
|
1 1 1 |
Only Available With Kit Only Available With Kit |
|
9 8-9 |
Plunger/Noodle Assembly Plunger Kit, Needle** |
1 1 |
Only Available With Kit |
|
11 |
Body, S6N (includes Name Plate) |
1 |
Not Available Separately |
|
12 13 14 15 12-15 |
Stem, Manual Open Washer, Flat Packing, Stem Nut, Packing Stem Kit, Opening |
1 1 1 1 1 |
Only Available With Kit Only Available With Kit Only Available With Kit Only Available With Kit |
|
13 15 14 13-15 |
Washer, Flat Nut, Packing Packing, Stem Packing Kit, Stem |
1 1 1 1 |
Only Available With Kit Only Available With Kit Only Available With Kit |
|
16 17 16-17 |
Gasket Seal Cap Cap Kit, Seal |
1 1 1 |
Only Available With Kit Only AvailableWith Kit |
|
18 |
Flange Kit (Specify Flange Style & Connection Size) Includes 2 Flanges Only. Sold Separately |
1 |
FK-13 |
|
19 20 21 19-20
19-20
|
Bolt Nut Gasket Package Bolt Kit (S6N Without Strainer) Soft Kit (S6N With Strainer) |
2 2
12
1 1 |
Only Available With Kit Only Available With Kit |
|
8,16,21 |
Gasket Kit (includes 2 Flange Gaskets) |
1 |
| Sku | Port Size | Strainer | Flange Type | Flange Connection | Coil | Coil Style | Check Valve | Valve Material | Price | Qty | Add To Cart | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S6N DN 24/DC QD | S6N05NX00R4XP See Details |
5mm (3/16 in) | No Strainer | No Flange | None | 24 | DIN, Standard | None | Meets Pressure Equipment Directive (PED) |
|
|||
| S6N 24/DC QD | S6N05NX00R4XS See Details |
5mm (3/16 in) | No Strainer | No Flange | None | 24 | DIN, Standard | None | Standard Valve |
|
|||
| S6N 3/4SW 240G ST | S6N05YS20H3XS See Details |
5mm (3/16 in) | w/ Strainer | SW | 3/4 in | 240/60 | Leaded, Green LED Pilot Light | None | Standard Valve |
|
|||
| S6N 3/4SW 240 QD ST | S6N05YS20H4XS See Details |
5mm (3/16 in) | w/ Strainer | SW | 3/4 in | 240/60 | DIN, Standard | None | Standard Valve |
|
|||
| S6N 3/4SW ST | S6N05YS20X0XS See Details |
5mm (3/16 in) | w/ Strainer | SW | 3/4 in | No Coil, AC | No Coil Style | None | Standard Valve |
|
|||
| S6N 1/2WN 120 ST | S6N05YW13B1XS See Details |
5mm (3/16 in) | w/ Strainer | WN | 1/2 in | 120/60 | Leaded, Standard | None | Standard Valve |
|
|||
| S6N 1/2WN 230 ST | S6N05YW13F1XS See Details |
5mm (3/16 in) | w/ Strainer | WN | 1/2 in | 230/50 | Leaded, Standard | None | Standard Valve |
|
|||
| S6N 1/2WN 230 QD ST | S6N05YW13F7XS See Details |
5mm (3/16 in) | w/ Strainer | WN | 1/2 in | 230/50 | DIN, CE Approved | None | Standard Valve |
|
|||
| S6N 1/2WN ST | S6N05YW13X0XS See Details |
5mm (3/16 in) | w/ Strainer | WN | 1/2 in | No Coil, AC | No Coil Style | None | Standard Valve |
|
|||
| S6N 120 ST CK4 | S6N05YX00B14S See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | 120/60 | Leaded, Standard | w/ CK-4 | Standard Valve |
|
|||
| S6N DN 120 ST | S6N05YX00B1XP See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | 120/60 | Leaded, Standard | None | Meets Pressure Equipment Directive (PED) |
|
|||
| S6N 120 ST | S6N05YX00B1XS See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | 120/60 | Leaded, Standard | None | Standard Valve |
|
|||
| S6N 120R ST | S6N05YX00B2XS See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | 120/60 | Leaded, Red LED Pilot Light | None | Standard Valve |
|
|||
| S6N 120G ST | S6N05YX00B3XS See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | 120/60 | Leaded, Green LED Pilot Light | None | Standard Valve |
|
|||
| S6N 120G QD ST | S6N05YX00B6XS See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | 120/60 | DIN, Green LED Pilot Light | None | Standard Valve |
|
|||
| S6N 208 ST | S6N05YX00D1XS See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | 208/60 | Leaded, Standard | None | Standard Valve |
|
|||
| S6N 230 QD ST | S6N05YX00F7XS See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | 230/50 | DIN, CE Approved | None | Standard Valve |
|
|||
| S6N 240 ST | S6N05YX00H1XS See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | 240/60 | Leaded, Standard | None | Standard Valve |
|
|||
| S6N 240G ST | S6N05YX00H3XS See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | 240/60 | Leaded, Green LED Pilot Light | None | Standard Valve |
|
|||
| S6N DN ST CK4 | S6N05YX00X04P See Details |
5mm (3/16 in) | w/ Strainer | No Flange | None | No Coil, AC | No Coil Style | w/ CK-4 | Meets Pressure Equipment Directive (PED) |
|
|||
