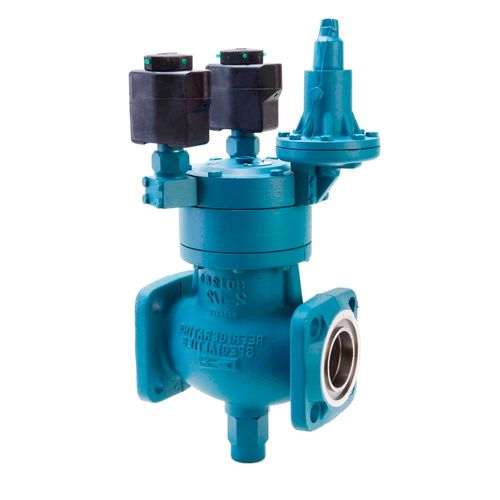

1-5/8 CK6D 3/8F 2SW A120G
$2,774.76
MPN: CK6D40AF10S50B3NSN
SKU: CK6D40AF10S50B3NSN
SKU: CK6D40AF10S50B3NSN
Product Specs
- Valve Type: CK
- Variation: CK-6D
- Port Size: 40mm (1 5/8 in)
- Solenoid Type: S6A
- Pilot Connection Flange Type: FPT
- Pilot Connection: 3/8 in
- Flange Type: SW
- Coil: 120/60
- Strainer: No Strainer
- Valve Material: Standard Valve
- Plated: No Plating
- Flange Connection: 2 in
- Coil Style: Leaded, Green LED Pilot Light
Product Documents
1-5/8 CK6D 3/8F 2SW A120G
Features
- Economical Solution to Evaporator Equalization after Defrost
- Low Pressure Drop
- Heavy Return Spring
- Manual Opening Stem
- Integrated S6B pilot solenoids
- Standard Coil Housing Meets NEMA 3R and 4 - Rain Tight
- Normally Open
- Maximum Rated Pressure (MRP): 27.6 bar (400 psig)
